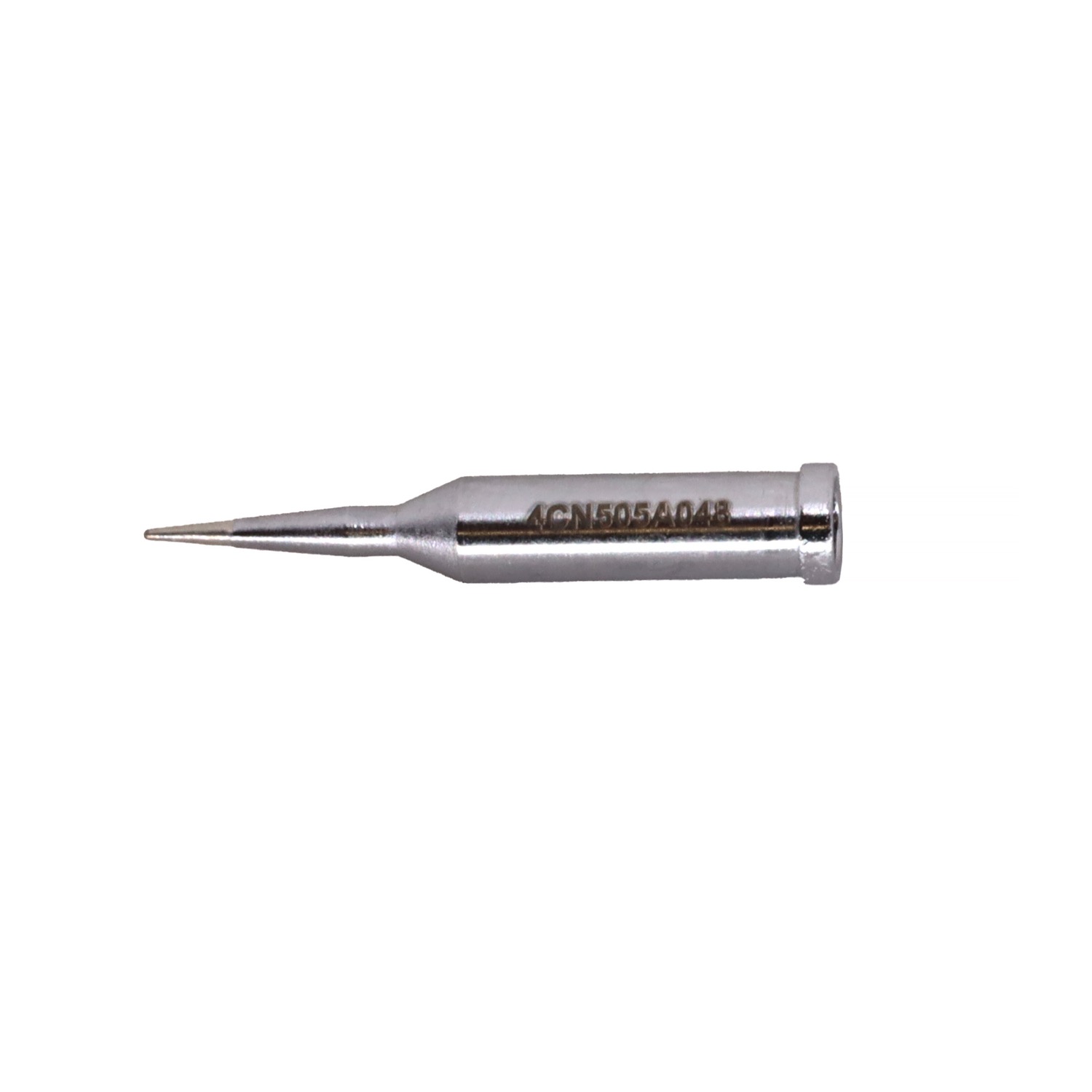

Specification	GT4-CN1505A

For Use With/Related Products	GT90, GT-HP-T4UF, GT-HC-T4
Length	0.591 in
Temperature Range (Max)	842 °F
Temperature Range (Min)	392 °F
Tip Shape	Conical
Tip Type	Soldering
Width	0.02 in

GT90 Series

Part	For Use With/Related Products	Accessory Type	Width	Length	Tip Shape	Tip Type	Temperature Range (Max)	Temperature Range (Min)	Diameter (ID)	Diameter
Metcal GTC-CH0032P	GT-HP-6C	Cartridge
Metcal GT4-CH0018S	GT-HC-T4 GT-HP-T4UF GT90		0.071 in	0.394 in	Chisel	Soldering	842 °F	392 °F
Metcal GTC-CH0070S	GT-HP-6C	Cartridge
Metcal GTC-HF6010V	GT-HP-6C	Cartridge
Metcal GT4-CN1502A-PK	GT-HC-T4 GT-HP-T4UF GT90		0.008 in	0.591 in	Conical	Soldering	842 °F	392 °F
Metcal GT4-CN0004R-PK	GT-HCT4 GT-HP-T4UF	Tip
Metcal GT4-HF3025V	GT-HC-T4 GT-HP-T4UF GT90			0.63 in	Hoof	Soldering	842 °F	392 °F	0.098 in	0.098 in
Metcal GTC-CH0018S	GT-HP-6C GT120		0.071 in	0.394 in	Chisel	Soldering	842 °F	392 °F
Metcal GTC-CN0005P	GT-HP-6C	Cartridge
Metcal GTC-CN0005A	GT-HP-6C GT120		0.02 in	0.551 in	Conical	Soldering	842 °F	392 °F
