Description
General part information
SEN0264

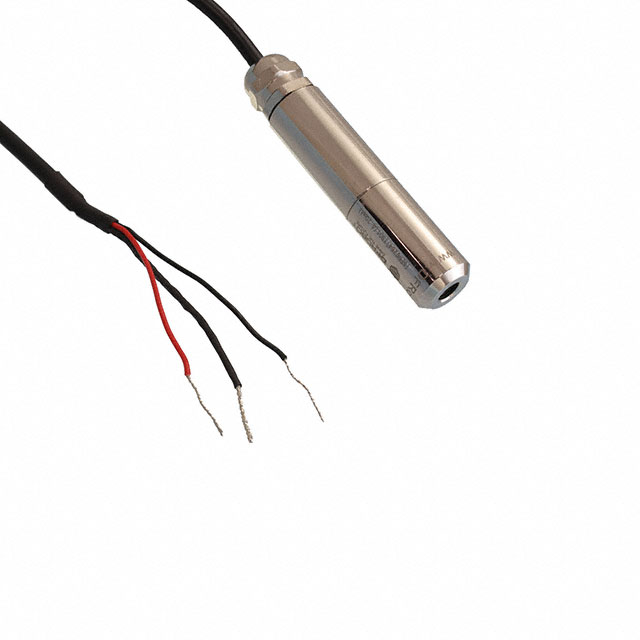

Temperature Sensor Analog, Infrared (IR) -40°C ~ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SEN0264 |
|---|---|
| Accuracy - Highest | 0.5 °C |
| Accuracy - Lowest | 4 °C |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Analog Current |
| Package / Case | Module |
| Sensing Temperature - Local (Max) | 85 °C |
| Sensing Temperature - Local (Min) | -40 °C |
| Sensing Temperature - Remote (Max) | 380 °C |
| Sensing Temperature - Remote (Min) | -70 °C |
| Sensor Type | Analog, Infrared (IR) |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 7.5 V |
