Description
General part information
EU0470500000G

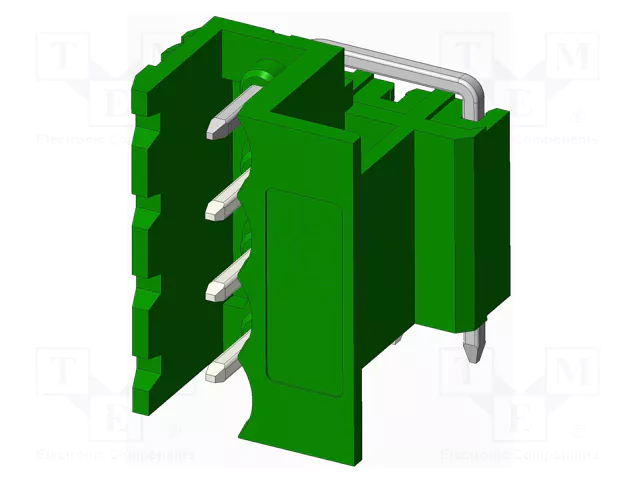

PLUGGABLE TERMINAL BLOCKS EU 5.0 - 4P BRIGHT TIN PLATED TERMINAL, RIGHT BENDING, NL66
Technical Specifications
Parameters and characteristics for this part
| Specification | EU0470500000G |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Current - UL | 20 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature (Max) | 115 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.197 in |
| Positions Per Level | 4 |
| Termination Style | Solder |
| Type | Male Pins, Shrouded (2 Side), Header |
| Voltage - UL | 300 V |
