Description
General part information

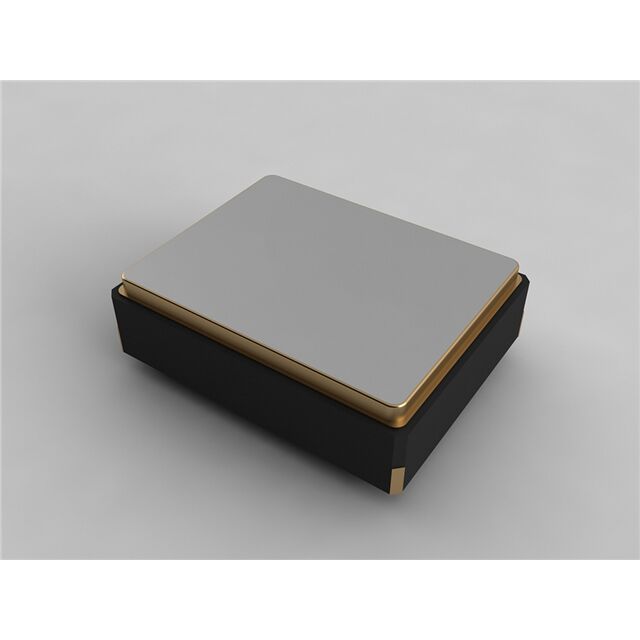

ILCX13-FF5F10-30.000MHZ
30 MHz ±30ppm Crystal 10pF 40 Ohms 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ILCX13-FF5F10-30.000MHZ |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohm |
| Frequency | 30 MHz |
| Frequency Stability | 30 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.035 in |
| Load Capacitance | 10 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | MHz Crystal |
