Description
General part information
5227161-7

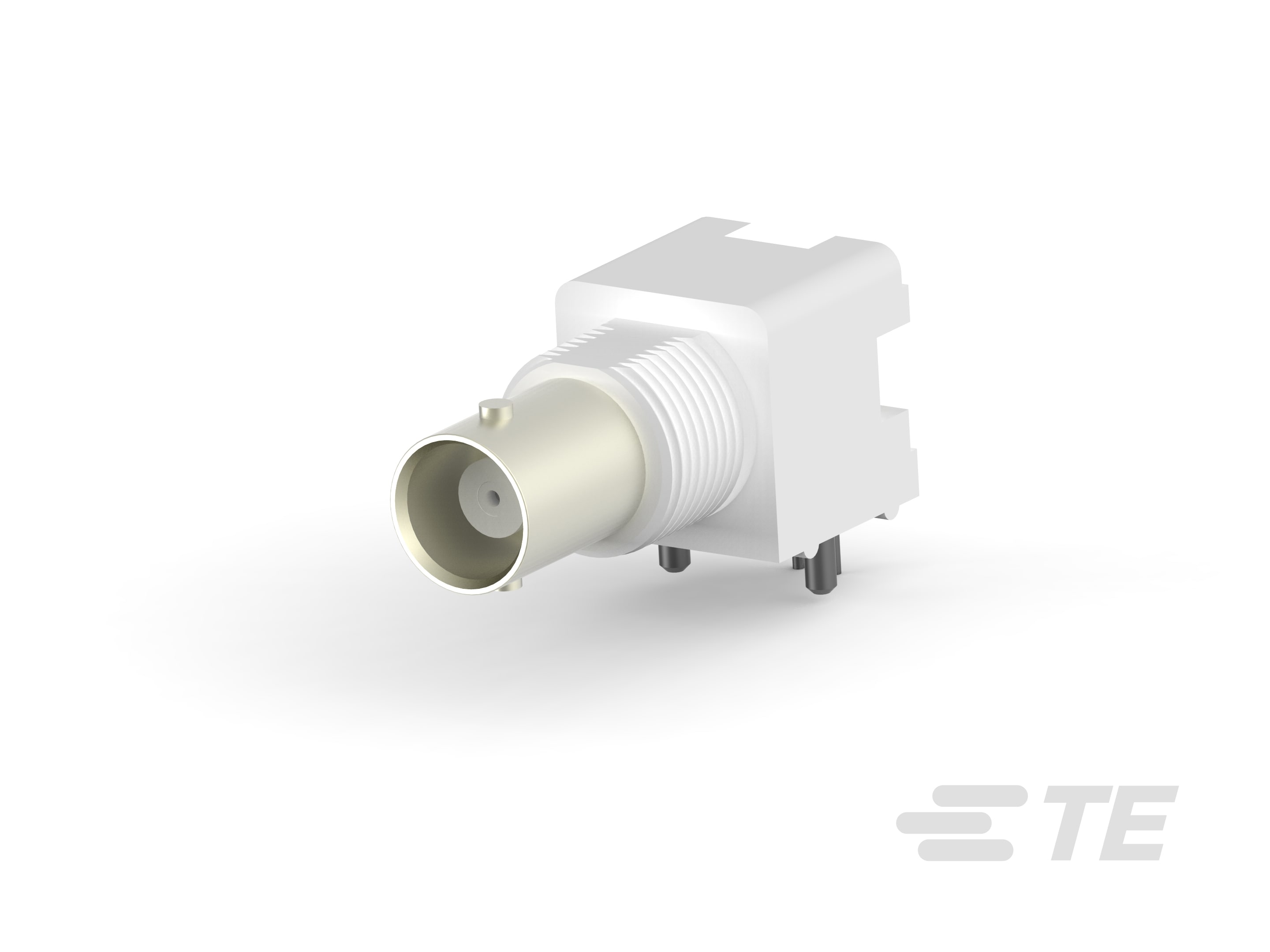

The 5227161-7 is a right-angle PCB-mount BNC Jack with gold-plated phosphor bronze contacts, polymethylpentene dielectric and nickel-plated zinc body. The RF connector allows quicker connects and disconnects than standard threaded interfaces and it provides bayonet locking coupling mechanism and solder termination.
Technical Specifications
Parameters and characteristics for this part
| Specification | 5227161-7 |
|---|---|
| Center Contact Material | Phosphor Bronze |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Features | Board Guide, Isolated |
| Frequency - Max | 4 GHz |
| Housing Color | Silver, White |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
