STR730-SK/IAR
ActiveSTMicroelectronics

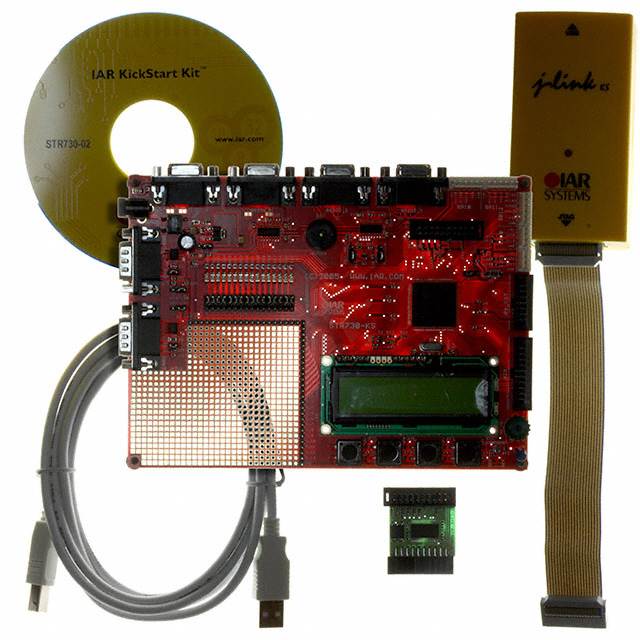

IAR KICKSTART STR73X EVAL BRD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
STR730-SK/IAR
ActiveSTMicroelectronics
IAR KICKSTART STR73X EVAL BRD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STR730-SK/IAR | STR730 Series |
|---|---|---|
| Board Type | Evaluation Platform | Evaluation Platform |
| Connectivity | - | I2C, SPI, CANbus, UART/USART |
| Contents | LCD, Board(s), J-Link Programmer, Cable(s) | LCD, Board(s), J-Link Programmer, Cable(s) |
| Core Processor | ARM7 | ARM7®, ARM7 |
| Core Size | - | 32-Bit Single-Core |
| Data Converters | - | 10 |
| Data Converters | - | 16 |
| Mounting Type | Fixed | Surface Mount, Fixed |
| Number of I/O | - | 112 |
| Operating Temperature | - | 105 °C |
| Operating Temperature | - | -40 °C |
| Oscillator Type | - | Internal |
| Package / Case | - | 144-LQFP, 144-LFBGA |
| Peripherals | - | WDT, DMA, PWM, POR |
| Platform | IAR KickStart | IAR KickStart |
| Program Memory Size | - | 128 - 256 KB |
| Program Memory Type | - | FLASH |
| RAM Size | - | 16 K |
| Speed | - | 36 MHz |
| Type | MCU 32-Bit | MCU 32-Bit |
| Utilized IC / Part | STR73x | STR73x |
| Voltage - Supply (Vcc/Vdd) | - | 5.5 V |
| Voltage - Supply (Vcc/Vdd) | - | 4.5 V |
STR730 Series
IC MCU 32BIT 128KB FLASH 144LQFP
| Part | RAM Size | Program Memory Size | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Package / Case | Peripherals | Connectivity | Operating Temperature [Max] | Operating Temperature [Min] | Core Processor | Oscillator Type | Mounting Type | Program Memory Type | Core Size | Data Converters [custom] | Data Converters [custom] | Speed | Number of I/O | Platform | Utilized IC / Part | Board Type | Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STR730FZ1T7 | 16 K | 128 KB | 5.5 V | 4.5 V | 144-LQFP | DMA, POR, PWM, WDT | CANbus, I2C, SPI, UART/USART | 105 °C | -40 °C | ARM7® | Internal | Surface Mount | FLASH | 32-Bit Single-Core | 10 | 16 | 36 MHz | 112 | |||||
STMicroelectronics STR730-SK/IAR | ARM7 | Fixed | IAR KickStart | STR73x | Evaluation Platform | Board(s), Cable(s), J-Link Programmer, LCD | MCU 32-Bit | ||||||||||||||||
STMicroelectronics STR730FZ2H7 | 16 K | 256 KB | 5.5 V | 4.5 V | 144-LFBGA | DMA, POR, PWM, WDT | CANbus, I2C, SPI, UART/USART | 105 °C | -40 °C | ARM7® | Internal | Surface Mount | FLASH | 32-Bit Single-Core | 10 | 16 | 36 MHz | 112 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
STR730 Series
STR73x IAR KickStart STR7 ARM7 MCU 32-Bit Embedded Evaluation Board
