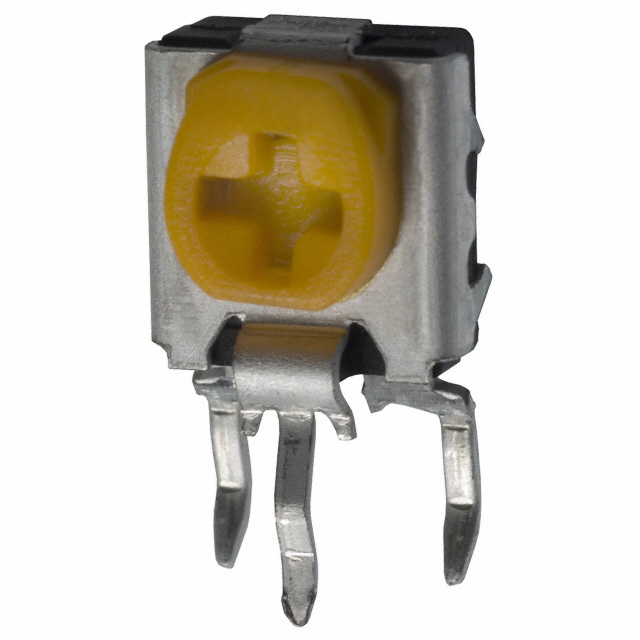

EVN-D2AA03B14
ObsoletePanasonic Electronic Components
TRIMMER 10K OHM 0.1W PC PIN SIDE
EVN-D2AA03B14
ObsoletePanasonic Electronic Components
TRIMMER 10K OHM 0.1W PC PIN SIDE
Description
General part information
EVN-D2AA03B14
10 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
Technical Specifications
Parameters and characteristics for this part
| Specification | EVN-D2AA03B14 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 turns |
| Power (Watts) | 100 mW |
| Power (Watts) Options | 1/10W |
| Resistance | 10 kOhm |
| Resistive Material | Carbon |
| Size / Dimension Length | 0.252 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.307 in |
| Termination Style | PC Pins |
| Tolerance | 30 % |
