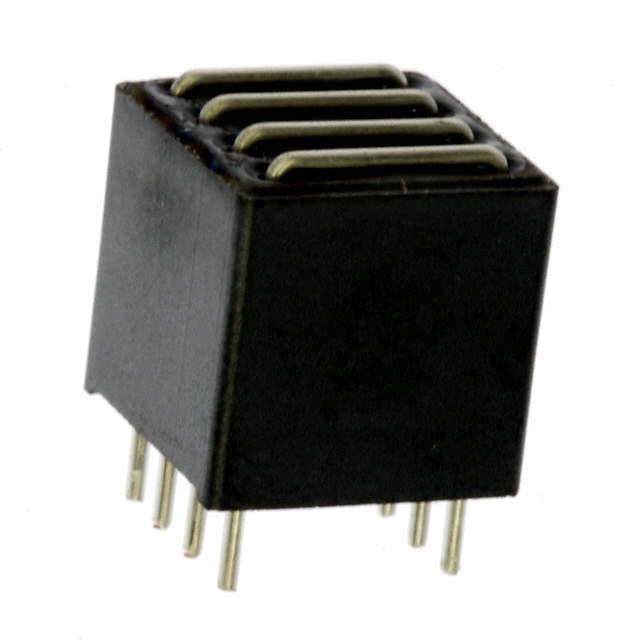

29F0428-0T0-10
ActiveLaird Technologies EMI
FERRITE BEAD 342 OHM 8THD 4LN
29F0428-0T0-10
ActiveLaird Technologies EMI
FERRITE BEAD 342 OHM 8THD 4LN
Description
General part information
29F0428-0T0-10
342 Ohms @ 100 MHz 4 Power Line Ferrite Bead 8-THD 10A 10mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | 29F0428-0T0-10 |
|---|---|
| Current Rating (Max) | 10 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.416 in |
| Impedance | 342 Ohms |
| Mounting Type | Through Hole |
| Number of Lines | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 8-THD |
| Size / Dimension Length | 0.428 in |
| Size / Dimension Width | 0.428 in |
