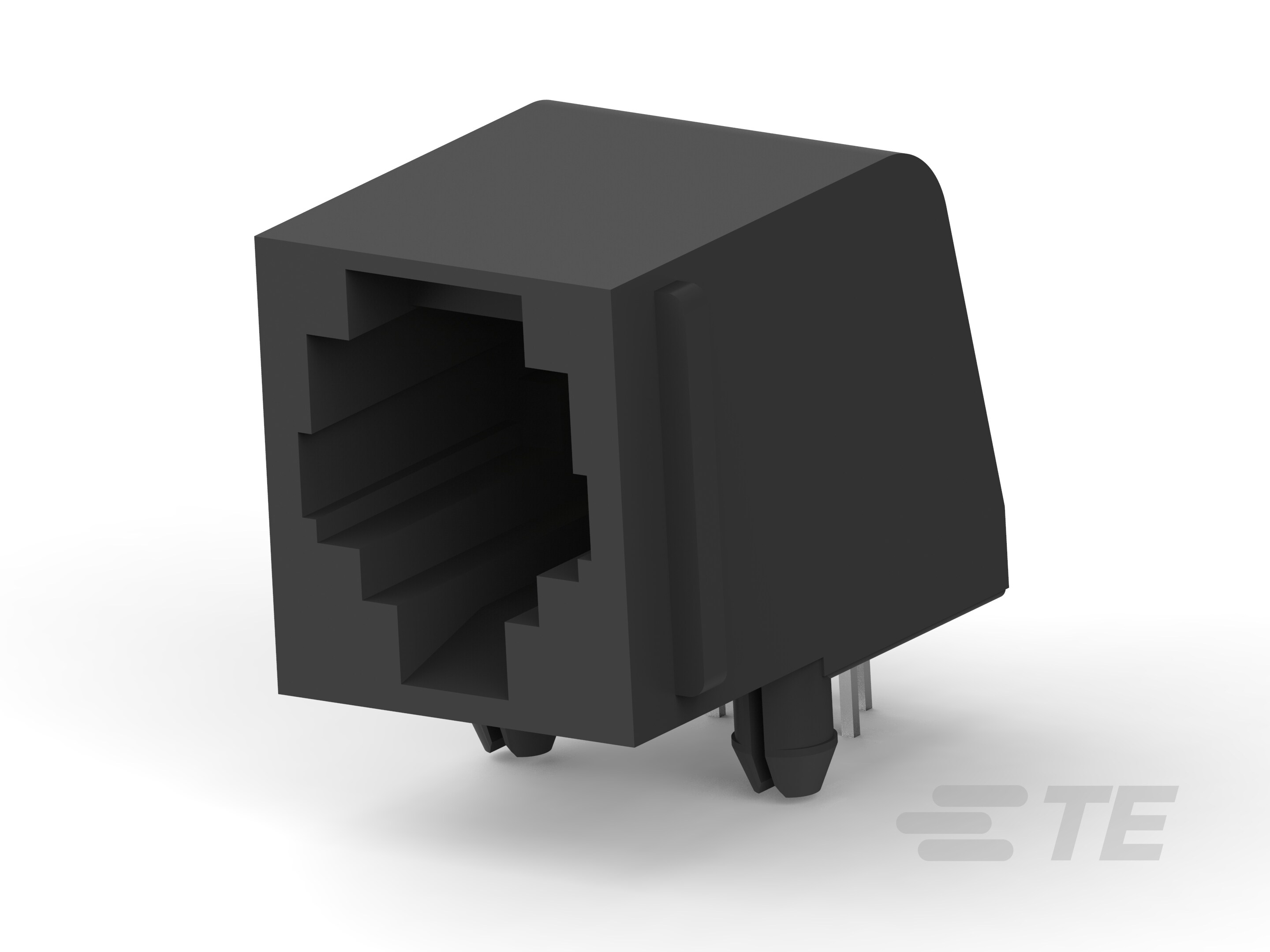

MJ,R/A,6P/6C,PNL STOPS,TRAY-5520250-3

5520250-3

Active
TE Connectivity AMP Connectors

MODULAR CONNECTOR, RJ25 JACK, 1 X 1 (PORT), 6P6C, CAT3, THROUGH HOLE MOUNT

Find alt
MJ,R/A,6P/6C,PNL STOPS,TRAY-5520250-3

5520250-3

Active
TE Connectivity AMP Connectors

MODULAR CONNECTOR, RJ25 JACK, 1 X 1 (PORT), 6P6C, CAT3, THROUGH HOLE MOUNT

Find alt

Description

General part information

5520250-3

The 5520250-3 is a 6P6C 1-port right angle RJ25/CAT-3 Modular Jack with gold-plated phosphor bronze contacts, black PBT housing and panel stops. The side entry through-hole modular jack is designed for direct mounting on PC boards, ease of soldering and board cleaning.

Technical Specifications

Parameters and characteristics for this part

Specification5520250-3
Connector TypeRJ25, RJ11, RJ12, RJ14, Jack
Contact FinishGold
Contact MaterialPhosphor Bronze
FeaturesBoard Lock, Panel Stops
LED ColorDoes Not Contain LED
Mounting TypeThrough Hole
Number of Contacts6
Number of Ports1
Number of Positions6
Number of Rows1
Orientation Angle90 °
Orientation DirectionRight
RatingsCat3
ShieldingUnshielded
Tab DirectionDown
TerminationSolder
