Description
General part information

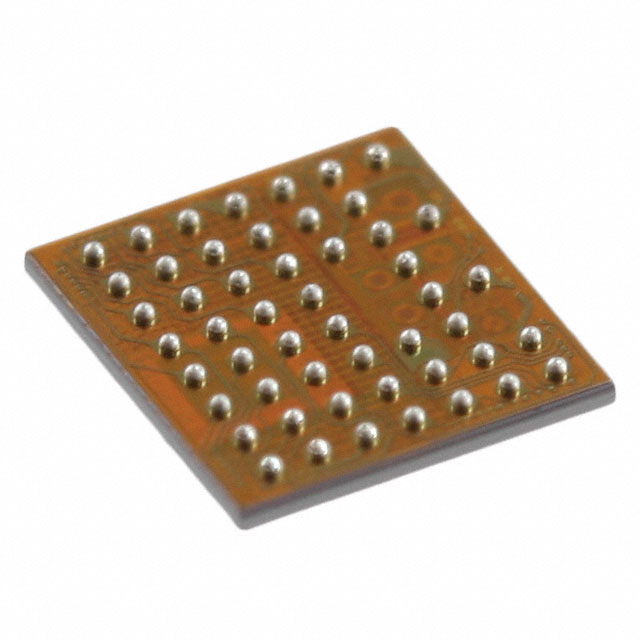

BC63B239A04-IUE-E4
IC RF TxRx + MCU Bluetooth Bluetooth v2.1 +EDR, Class 2 and 3 2.4GHz 51-UFBGA, WLCSP
Technical Specifications
Parameters and characteristics for this part
| Specification | BC63B239A04-IUE-E4 |
|---|---|
| Data Rate (Max) | 3 Mbps |
| Frequency | 2.4 GHz |
| Memory Size (RAM) | 48 kB |
| Memory Size (ROM) | 6 MB |
| Memory Size (SRAM) | 48 kB |
| Memory Type | ROM, RAM |
| Mounting Type | Surface Mount |
| Package / Case | 51-UFBGA, WLCSP |
| Package Length | 3.16 mm |
| Package Name | 51-WLCSP |
| Package Width | 3.44 mm |
| Power - Output | 7 dBm |
| Protocol | Bluetooth v2.1 +EDR, Class 2 and 3 |
| RF Family/Standard | Bluetooth |
| Type | TxRx + MCU |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.7 V |
