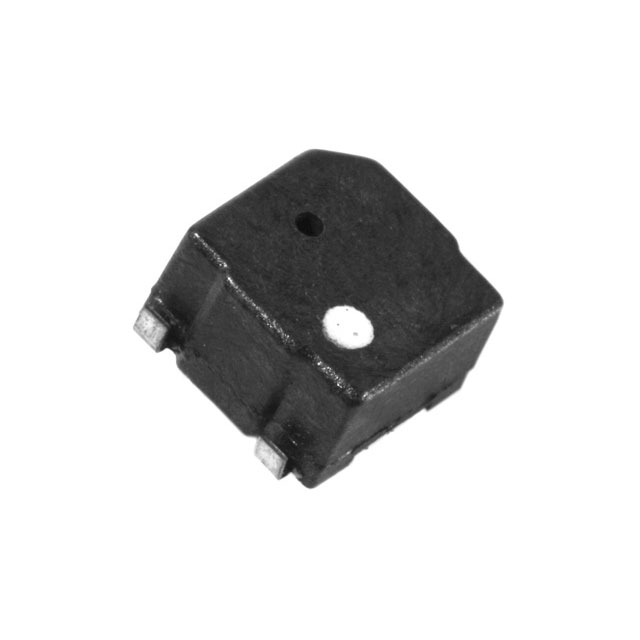

Specification	TE054003-2

Current - Supply	100 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	4 kHz
Height - Seated (Max)	0.118 in
Input Type	Zero-Peak Signal
Mounting Type	Surface Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Port Location	Top
Size / Dimension Length	0.197 in
Size / Dimension Width	0.197 in
Sound Pressure Level (SPL)	78 dB
Technology	Electromechanical
Termination	Solder Pads
Voltage - Rated	3 VDC
Voltage Range (Max)	4 V
Voltage Range (Min)	2 V
