FBL08A12M1A
ObsoleteNMB TECHNOLOGIES

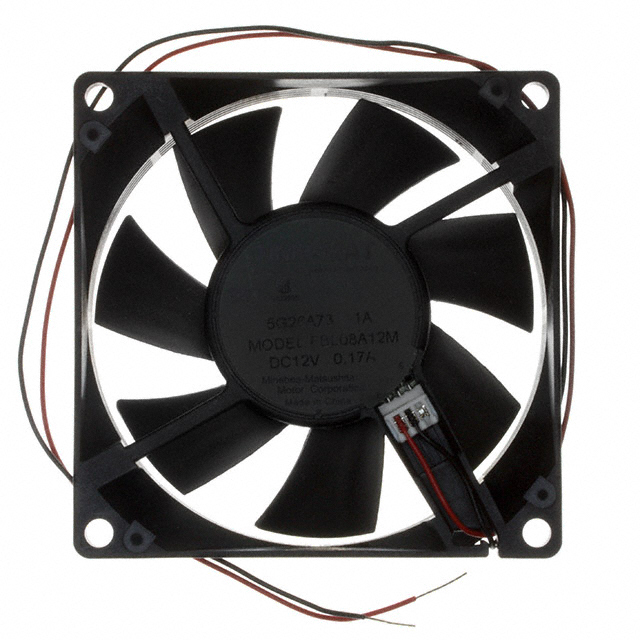

FAN AXIAL 80X25.5MM 12VDC WIRE
FBL08A12M1A
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 80X25.5MM 12VDC WIRE
Description
General part information
FBL08A12M1A
Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Hydro-wave (HWB) 32.1 CFM (0.899m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | FBL08A12M1A |
|---|---|
| Air Flow | 32.1 CFM |
| Bearing Type | Hydro-wave (HWB) |
| Current Rating | 0.124 A |
| Fan Type | Tubeaxial |
| Lifetime | 50000 Hrs |
| Noise | 28 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 1.49 W |
| RPM | 2450 RPM |
| Size / Dimension Height | 80 mm |
| Size / Dimension Length | 80 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.099 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 13.8 VDC |
| Voltage Range (Min) | 7 V |
| Weight | 0.22 lb |
| Width | 25.5 mm |
