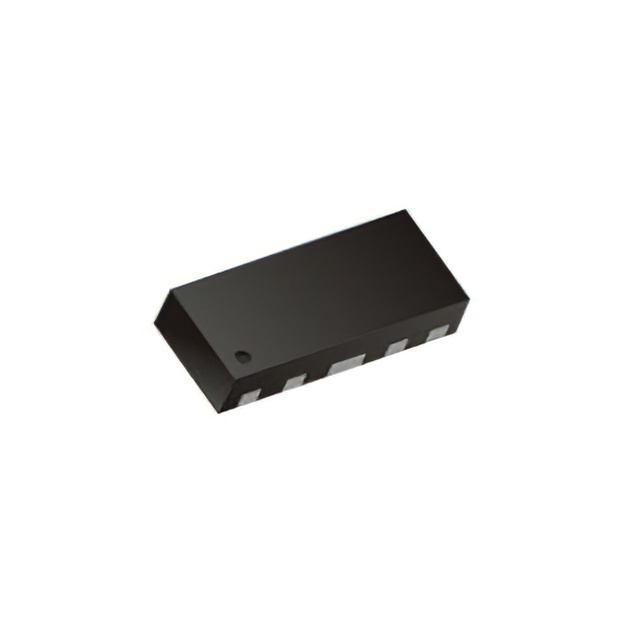

CPDVR103V3UA-HF
ActiveComchip Technology
DIODE ESD 3.3VWM 10VC DFN2510
CPDVR103V3UA-HF
ActiveComchip Technology
DIODE ESD 3.3VWM 10VC DFN2510
Description
General part information
CPDVR103V3UA-HF
14V Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510
Technical Specifications
Parameters and characteristics for this part
| Specification | CPDVR103V3UA-HF |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.4 pF |
| Current - Peak Pulse | 4 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 10-UFDFN |
| Package Name | DFN2510 |
| Power - Peak Pulse | 56 W |
| Power Line Protection | Yes |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 4.2 V |
| Voltage - Clamping (Max) | 14 V |
| Voltage - Reverse Standoff (Max) | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
