Description
General part information
205549

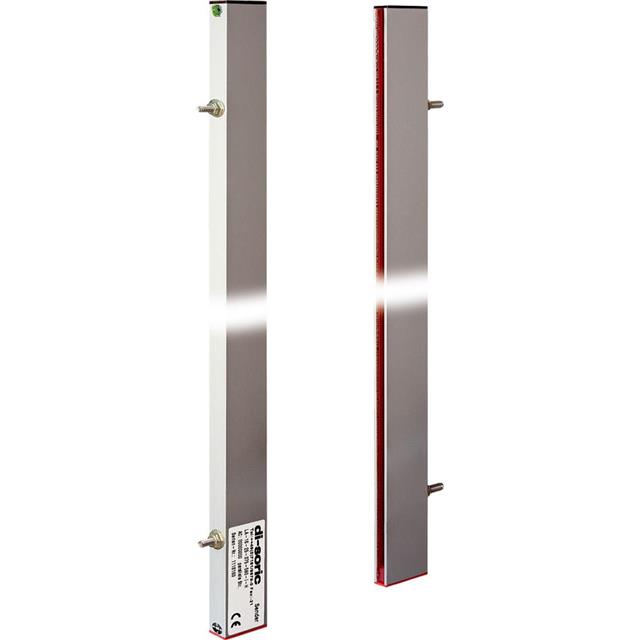

Optical Sensor 27.559" ~ 157.480" (700mm ~ 4m) PNP-NO
Technical Specifications
Parameters and characteristics for this part
| Specification | 205549 |
|---|---|
| Cable Length | 157.48 in |
| Connection Method | Cable |
| Ingress Protection | IP65, IP54 |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 880 nm |
| Operating Temperature (Max) | 45 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | PNP-NO |
| Sensing Distance Maximum | 157.48 " |
| Sensing Distance Minimum | 27.559 " |
| Voltage - Supply (Maximum) | 28.8 VDC |
| Voltage - Supply (Minimum) | 20.4 V |
