102160-3
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 16POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102160-3
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 16POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 102160-3 | 102160 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 6.1 mm | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in | 0.24 in |
| Contact Length - Post | 2.79 mm | 2.79 mm |
| Contact Length - Post [x] | 0.11 in | 0.11 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1 A | 1 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.315 in | 0.315 in |
| Insulation Height | 8 mm | 8 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 10 - 60 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 560 | $ 2.44 | |
102160 Series
CONN HEADER R/A 26POS 2.54MM
| Part | Termination | Contact Finish - Mating | Insulation Height | Insulation Height | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Length - Mating | Contact Length - Mating [x] | Contact Length - Post [x] | Contact Length - Post | Number of Positions Loaded | Number of Rows | Material Flammability Rating | Shrouding | Style | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Material | Voltage Rating | Contact Type | Connector Type | Current Rating (Amps) | Insulation Color | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102160-6 | Solder | Gold or Gold-Palladium | 0.315 in | 8 mm | Through Hole, Right Angle | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Tin-Lead | -65 ░C | 105 ░C | 26 | 6.1 mm | 0.24 in | 0.11 in | 2.79 mm | All | 2 | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Push-Pull | 0.1 in | 2.54 mm | Square | Brass | 250 VAC | Male Pin | Header | 1 A | Black | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 102160-2 | Solder | Gold or Gold-Palladium | 0.315 in | 8 mm | Through Hole, Right Angle | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Tin-Lead | -65 ░C | 105 ░C | 14 | 6.1 mm | 0.24 in | 0.11 in | 2.79 mm | All | 2 | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Push-Pull | 0.1 in | 2.54 mm | Square | Brass | 250 VAC | Male Pin | Header | 1 A | Black | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 1-102160-1 | Solder | Gold or Gold-Palladium | 0.315 in | 8 mm | Through Hole, Right Angle | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Tin-Lead | -65 ░C | 105 ░C | 60 | 6.1 mm | 0.24 in | 0.11 in | 2.79 mm | All | 2 | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Push-Pull | 0.1 in | 2.54 mm | Square | Brass | 250 VAC | Male Pin | Header | 1 A | Black | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 102160-3 | Solder | Gold or Gold-Palladium | 0.315 in | 8 mm | Through Hole, Right Angle | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Tin-Lead | -65 ░C | 105 ░C | 6.1 mm | 0.24 in | 0.11 in | 2.79 mm | All | 2 | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Push-Pull | 0.1 in | 2.54 mm | Square | Brass | 250 VAC | Male Pin | Header | 1 A | Black | 2.54 mm | 0.1 in | 16 | |
TE Connectivity AMP Connectors 102160-4 | Solder | Gold or Gold-Palladium | 0.315 in | 8 mm | Through Hole, Right Angle | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Tin-Lead | -65 ░C | 105 ░C | 20 | 6.1 mm | 0.24 in | 0.11 in | 2.79 mm | All | 2 | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Push-Pull | 0.1 in | 2.54 mm | Square | Brass | 250 VAC | Male Pin | Header | 1 A | Black | 2.54 mm | 0.1 in | |
TE Connectivity AMP Connectors 102160-1 | Solder | Gold or Gold-Palladium | 0.315 in | 8 mm | Through Hole, Right Angle | 2.54 µm | 100 µin | 30 Áin | 0.76 Ám | Tin-Lead | -65 ░C | 105 ░C | 10 | 6.1 mm | 0.24 in | 0.11 in | 2.79 mm | All | 2 | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Push-Pull | 0.1 in | 2.54 mm | Square | Brass | 250 VAC | Male Pin | Header | 1 A | Black | 2.54 mm | 0.1 in |
Description
General part information
102160 Series

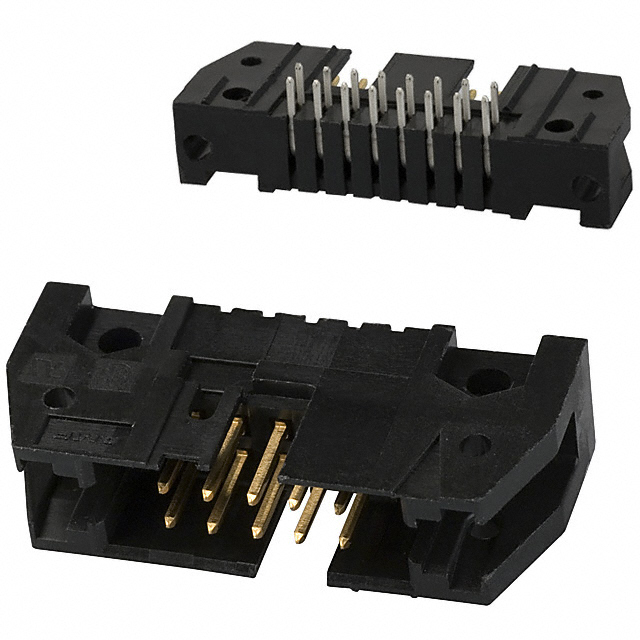

Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
