AHV12V1KVR5MAP

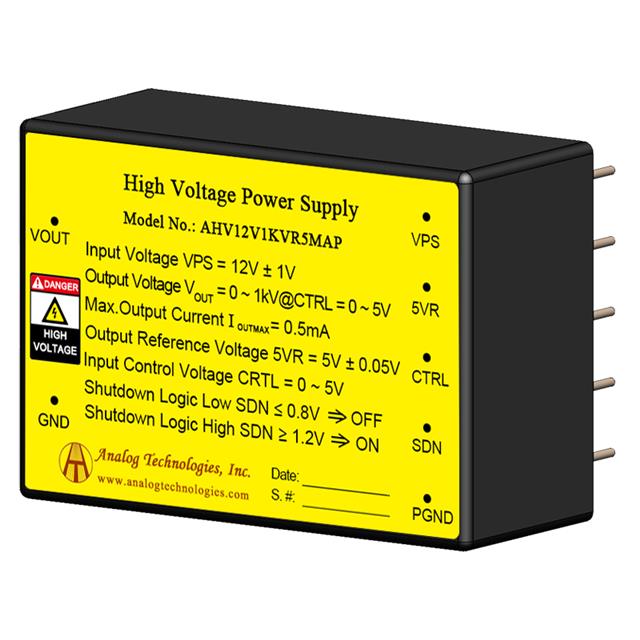

High Voltage - Non-Isolated Module DC DC Converter 1 Output 0 ~ 1000V 500µA 11V - 13V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AHV12V1KVR5MAP |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 0.5 mA |
| Efficiency | 70 % |
| Features | Adjustable Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 500 mW |
| Size / Dimension Height | 0.79 in |
| Size / Dimension Length | 1.97 in |
| Size / Dimension Width | 1.38 in |
| Type | High Voltage - Non-Isolated Module |
| Voltage - Input (Max) | 13 V |
| Voltage - Input (Min) | 11 V |
| Voltage - Output 1 (Max) | 1000 V |
| Voltage - Output 1 (Min) | 0 V |
