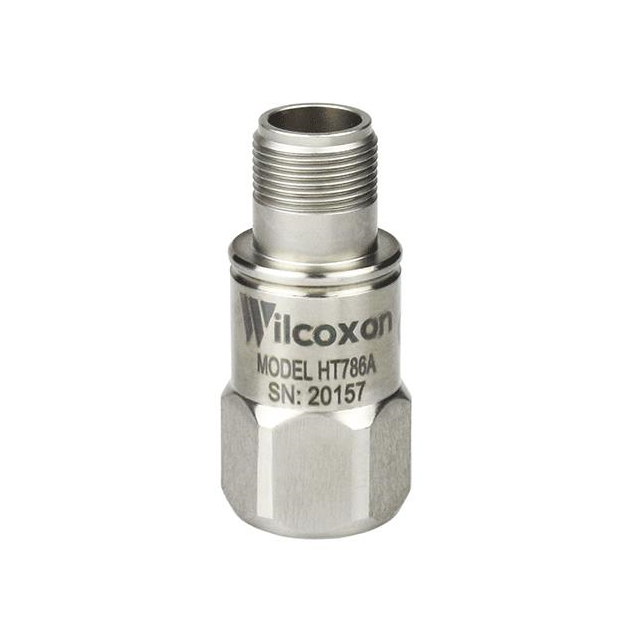

HT786A

Active

Amphenol Wilcoxon Sensing Technologies

ACCEL IEPE SENSOR 100MV/G 5%

Search across all available documentation for this part.

Active

Amphenol Wilcoxon Sensing Technologies

ACCEL IEPE SENSOR 100MV/G 5%

Technical Specifications

Parameters and characteristics for this part

ACCEL IEPE SENSOR 100MV/G 5%

Part	Mounting Type	Acceleration Range	Package / Case	Bandwidth [Max]	Bandwidth [Min]	Sensitivity (mV/g)	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Axis [x]
Amphenol Wilcoxon Sensing Technologies HT786A	Chassis Mount	80 g	Module	14 kHz	0.5 Hz	100 mV/g	30 VDC	18 V	Analog Voltage	Analog	150 °C	-50 °C	X

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Accelerometer X Axis ±80g 0.5Hz ~ 14kHz

Technical documentation and resources
