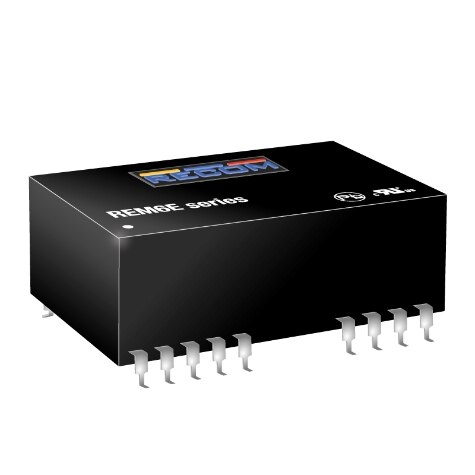

Specification	REM6E-2415D/R6/A/SMD/X1

Applications	Medical
Approval Agency	CB, cURus
Current - Output (Max)	200 mA
Efficiency	84 %
Features	OCP, OVP, UVLO, SCP
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-40 °C
Package Leads	18 Leads
Package Name	24-SMD Module
Power (Watts)	6 W
Size / Dimension Height	0.43 in
Size / Dimension Length	1.25 in
Size / Dimension Width	0.8 in
Type	Isolated Module
Voltage - Input (Max)	36 V
Voltage - Input (Min)	18 V
Voltage - Isolation	6 kV
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

REM6E Series

...

Part	Approval Agency	Efficiency	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Power (Watts)	Voltage - Output 1	Current - Output (Max)	Package Leads	Package Name	Type	Voltage - Input (Max)	Mounting Type	Voltage - Output 2	Voltage - Input (Min)	Number of Outputs	Features	Voltage - Isolation
Recom Power REM6E-1215D/R6/A/SMD/X1	CB cURus	83 %	1.25 in	0.43 in	0.8 in	75 °C	-40 °C	Medical	6 W	15 V	200 mA	18 Leads	24-SMD Module	Isolated Module	18 V	Surface Mount	-15 V	9 V	2	OCP OVP SCP UVLO	6 kV
Recom Power REM6E-2415S/R6/A/SMD	CB cURus	84 %	1.25 in	0.43 in	0.8 in	75 °C	-40 °C	Medical	6 W	15 V	400 mA	18 Leads	24-SMD Module	Isolated Module	36 V	Surface Mount		18 V	1	OCP OVP SCP	6 kV
Recom Power REM6E-2412D/R8/A/X1	CB cURus	83 %	1.25 in	0.4 in	0.8 in	75 °C	-40 °C	Medical	6 W	12 V	250 mA	7 Leads	24-DIP Module	Isolated Module	36 V	Through Hole	-12 V	18 V	2	OCP OVP SCP UVLO	8 kV
Recom Power REM6E-4824S/R8/A	CB cURus	85 %	1.25 in	0.4 in	0.8 in	75 °C	-40 °C	Medical	6 W	24 V	250 mA	7 Leads	24-DIP Module	Isolated Module	75 V	Through Hole		36 V	1	OCP OVP SCP	8 kV
Recom Power REM6E-4812D/R10/A	CB cURus	84 %	1.25 in	0.4 in	0.8 in	75 °C	-40 °C	Medical	6 W	12 V	250 mA	7 Leads	24-DIP Module	Isolated Module	75 V	Through Hole	-12 V	36 V	2	OCP OVP SCP	10000 Vrms
Recom Power REM6E-4815D/R6/A/SMD	CB cURus	84 %	1.25 in	0.43 in	0.8 in	75 °C	-40 °C	Medical	6 W	15 V	200 mA	18 Leads	24-SMD Module	Isolated Module	75 V	Surface Mount	-15 V	36 V	2	OCP OVP SCP	6 kV
Recom Power REM6E-2412S/R8/A/X1	CB cURus	83 %	1.25 in	0.4 in	0.8 in	75 °C	-40 °C	Medical	6 W	12 V	500 mA	7 Leads	24-DIP Module	Isolated Module	36 V	Through Hole		18 V	1	OCP OVP SCP UVLO	8 kV
Recom Power REM6E-1212D/R8/A/CTRL	CB cURus	82 %	1.25 in	0.4 in	0.8 in	75 °C	-40 °C	Medical	6 W	12 V	250 mA	7 Leads	24-DIP Module	Isolated Module	18 V	Through Hole	-12 V	9 V	2	OCP OVP Remote On/Off SCP	8 kV
Recom Power REM6E-4809D/R8/A	CB cURus	83 %	1.25 in	0.4 in	0.8 in	75 °C	-40 °C	Medical	6 W	9 V	335 mA	7 Leads	24-DIP Module	Isolated Module	75 V	Through Hole	-9 V	36 V	2	OCP OVP SCP	8 kV
Recom Power REM6E-2424S/R8/A/X1	CB cURus	84 %	1.25 in	0.4 in	0.8 in	75 °C	-40 °C	Medical	6 W	24 V	250 mA	7 Leads	24-DIP Module	Isolated Module	36 V	Through Hole		18 V	1	OCP OVP SCP UVLO	8 kV
