B58620L3200B801
ActiveEPCOS - TDK Electronics

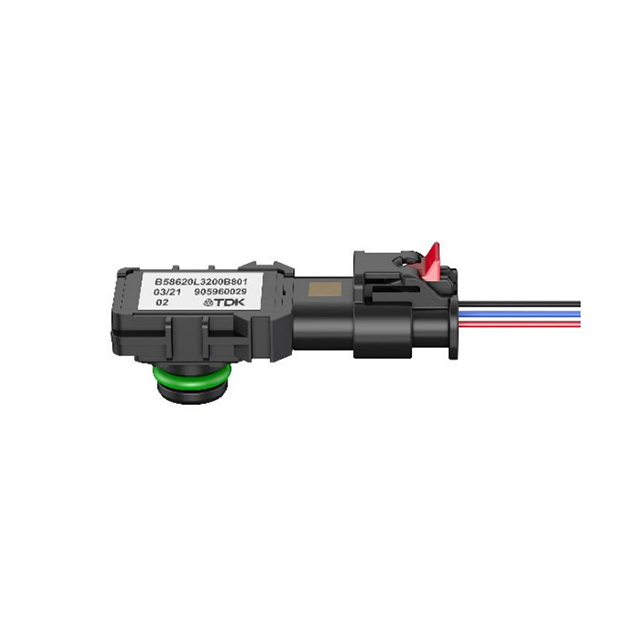

PRESSURE SENSOR ALA 1.500 K VR Z
B58620L3200B801
ActiveEPCOS - TDK Electronics
PRESSURE SENSOR ALA 1.500 K VR Z
Description
General part information
B58620L3200B801
PRESSURE SENSOR ALA 1.500 K VR Z
Technical Specifications
Parameters and characteristics for this part
| Specification | B58620L3200B801 |
|---|---|
| Accuracy | 1 % |
| Applications | Industrial Automation |
| Maximum Pressure | 43.51 PSI |
| Operating Pressure (Max) | 21.76 PSI |
| Operating Pressure (Min) | 7.25 PSI |
| Operating Temperature (Max) | 140 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | Module |
| Port Diameter | 0.47 in |
| Port Feature | Tube |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
