RDK-142
ObsoletePOWER INTEGRATIONS
KIT REF DESIGN TOP HX FOR TOP258
RDK-142
ObsoletePOWER INTEGRATIONS
KIT REF DESIGN TOP HX FOR TOP258
Description
General part information
RDK-142

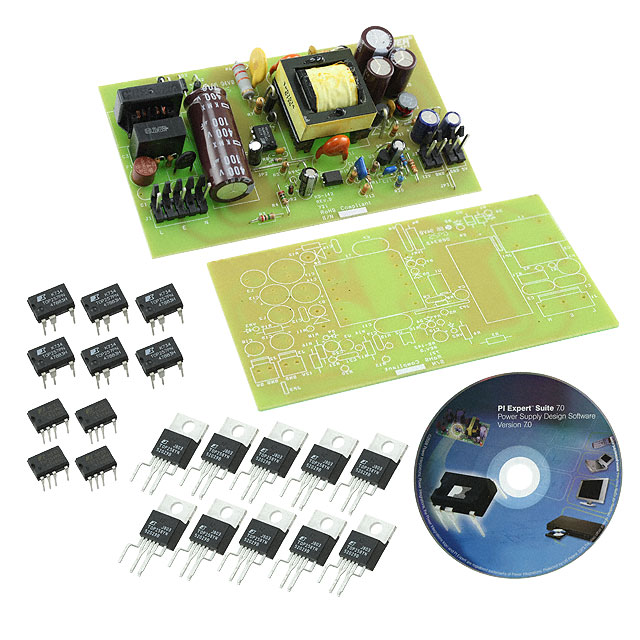

TOP258 TOPSwitch®-HX AC/DC, Primary Side 2, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | RDK-142 |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output (Max) | 2.2 A |
| Current - Output (Min) | 2 A |
| Frequency - Switching | 30 kHz |
| Main Purpose | Primary Side, AC/DC |
| Non-Isolated Output Count | 2 count |
| Output Type | Non-Isolated |
| Power - Output | 35 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Total Output Count | 2 |
| Utilized IC / Part | TOP258 |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 5 VDC, 12 V |
