Description
General part information

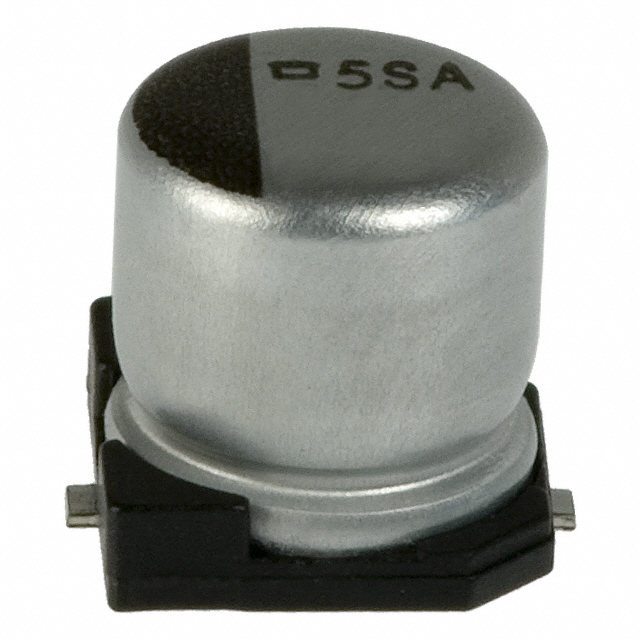

EMVK350ADA100ME55G
10 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | EMVK350ADA100ME55G |
|---|---|
| Applications | General Purpose |
| Capacitance | 10 µF |
| Height - Seated (Max) | 0.205 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ripple Current | 25 mA |
| Size / Dimension Diameter | 0.197 in |
| Surface Mount Land Length | 0.209 in |
| Surface Mount Land Width | 0.209 in |
| Tolerance | 20 % |
| Voltage - Rated | 35 V |
