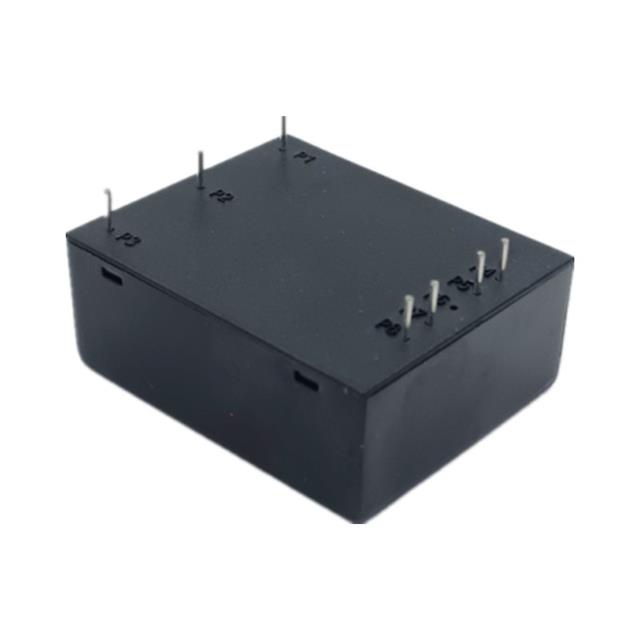

AC220TD1212DC-15W
ActiveHenLv Power
AC DC CONVERTER 12V/12V 15W
AC220TD1212DC-15W
ActiveHenLv Power
AC DC CONVERTER 12V/12V 15W
Description
General part information
AC220TD1212DC-15W
AC DC Converters Output 12V 12V 625mA 85 ~ 305 VAC, 120 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AC220TD1212DC-15W |
|---|---|
| Current - Output (Max) | 625 mA |
| Efficiency | 72 % |
| Size / Dimension Height | 0.87 in |
| Size / Dimension Length | 2.44 in |
| Size / Dimension Width | 1.77 in |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 12 V |
