SCP7RT78HEL1RLS06E

Active

Samsung Semiconductor, Inc.

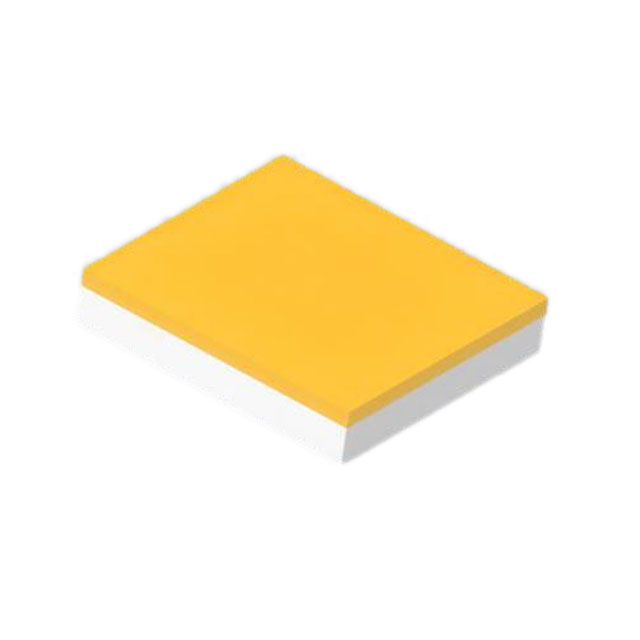

LED LM101B COOL WHITE 5000K SMD

Search across all available documentation for this part.

Active

Samsung Semiconductor, Inc.

LED LM101B COOL WHITE 5000K SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED LM101A COOL WHITE 5000K SMD

Part	Package / Case	Package / Case	Mounting Type	Viewing Angle	Color	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Min]	Current - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Supplier Device Package	CCT (K)	Current - Max [Max]	Flux @ 25°C, Current - Test	CCT (K)
Samsung Semiconductor, Inc. SCP7RT78HPL1RUS06E	0505	1313 Metric	Surface Mount	150 °	Cool, White	70	149 lm/W	71 lm	65 lm	59 lm	150 mA	2.9 V	0.045 "	1.15 mm	1.15 mm	0.045 in	0.45 mm	0.018 "	SMD	5000 K
Samsung Semiconductor, Inc. SCP7RT78HEL1RUS06E		0606, 1616 Metric	Surface Mount	120 °	Cool, White	70	203 lm/W				65 mA	2.8 V	0.067 in	1.7 mm	1.7 mm	0.067 in	0.45 mm	0.018 "	SMD		350 mA	37 lm
Samsung Semiconductor, Inc. SCP7RT78HEL1RLS06E		0606, 1616 Metric	Surface Mount	120 °	Cool, White	70	203 lm/W				65 mA	2.8 V	0.067 in	1.7 mm	1.7 mm	0.067 in	0.45 mm	0.018 "	SMD	5000 K	350 mA	37 lm	5-Step MacAdam Ellipse

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LM101B White, Cool 5000K 5-Step MacAdam Ellipse 2.8V 65mA 120° 0606 (1616 Metric)
