AXA-DMDM
ActivePasternack
ADP7/16 DIN M / 7/16 DIN M
AXA-DMDM
ActivePasternack
ADP7/16 DIN M / 7/16 DIN M
Description
General part information
AXA-DMDM

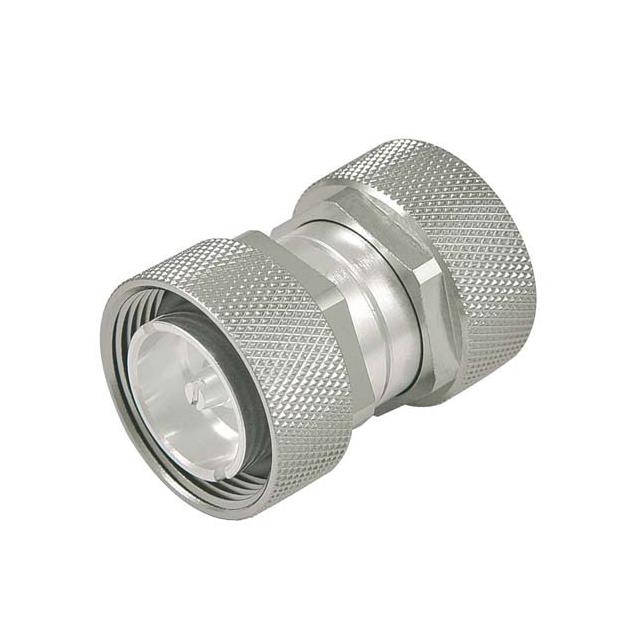

Adapter Coaxial Connector 7/16 Plug, Male Pin To 7/16 Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA-DMDM |
|---|---|
| Adapter Series | 7/16 DIN to 7/16 DIN |
| Adapter Type | Plug to Plug |
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Center Gender | Male |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Male Pin, 7/16 Plug |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | 7/16 Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 2 dB |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
