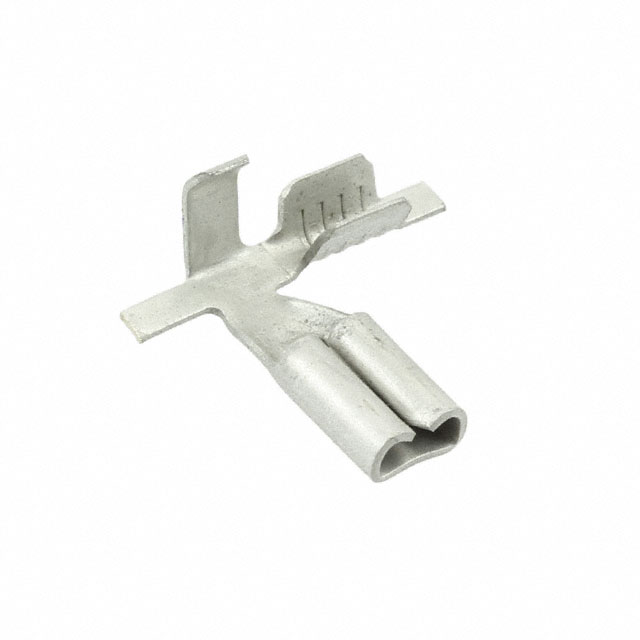

Specification	1217878-1

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter (Max)	0.1 in
Insulation Diameter (Min)	0.065 in
Mounting Type	Right Angle, Free Hanging (In-Line)
Tab Length	0.2 in
Tab Thickness	0.032 in
Tab Width	0.11 in
Terminal Angle	90 °
Terminal Type	Flag, Angled
Termination	Crimp
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

FASTON 110 Series

...

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Mounting Type	Termination	Tab Thickness	Tab Length	Length - Overall	Terminal Type	Tab Width	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Gender
TE Connectivity AMP Connectors 170043-6	0.079 in	0.118 in	Free Hanging (In-Line)	Crimp	0.02 in	0.252 in	0.606 in	Standard	0.11 in	24 AWG	19.5 AWG	Non-Insulated	Female
TE Connectivity AMP Connectors 170043-7	0.079 in	0.118 in	Free Hanging (In-Line)	Crimp	0.02 in	0.252 in	0.606 in	Standard	0.11 in	24 AWG	19.5 AWG	Non-Insulated	Female
