Description
General part information

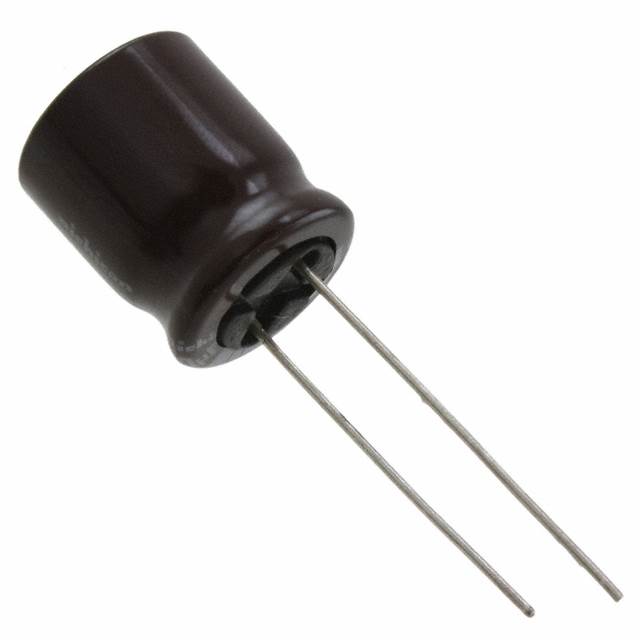

UPM1K680MHD6TO
68 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | UPM1K680MHD6TO |
|---|---|
| Applications | Automotive |
| Capacitance | 68 µF |
| Height - Seated (Max) | 0.669 in |
| Impedance | 310 mOhm |
| Lead Spacing | 0.197 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 325 mA |
| Size / Dimension Diameter | 0.492 in |
| Tolerance | 20 % |
| Voltage - Rated | 80 Vp-p |
