205201-6
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20-24AWG GOLD CRIMP
205201-6
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20-24AWG GOLD CRIMP
Description
General part information
205201-6

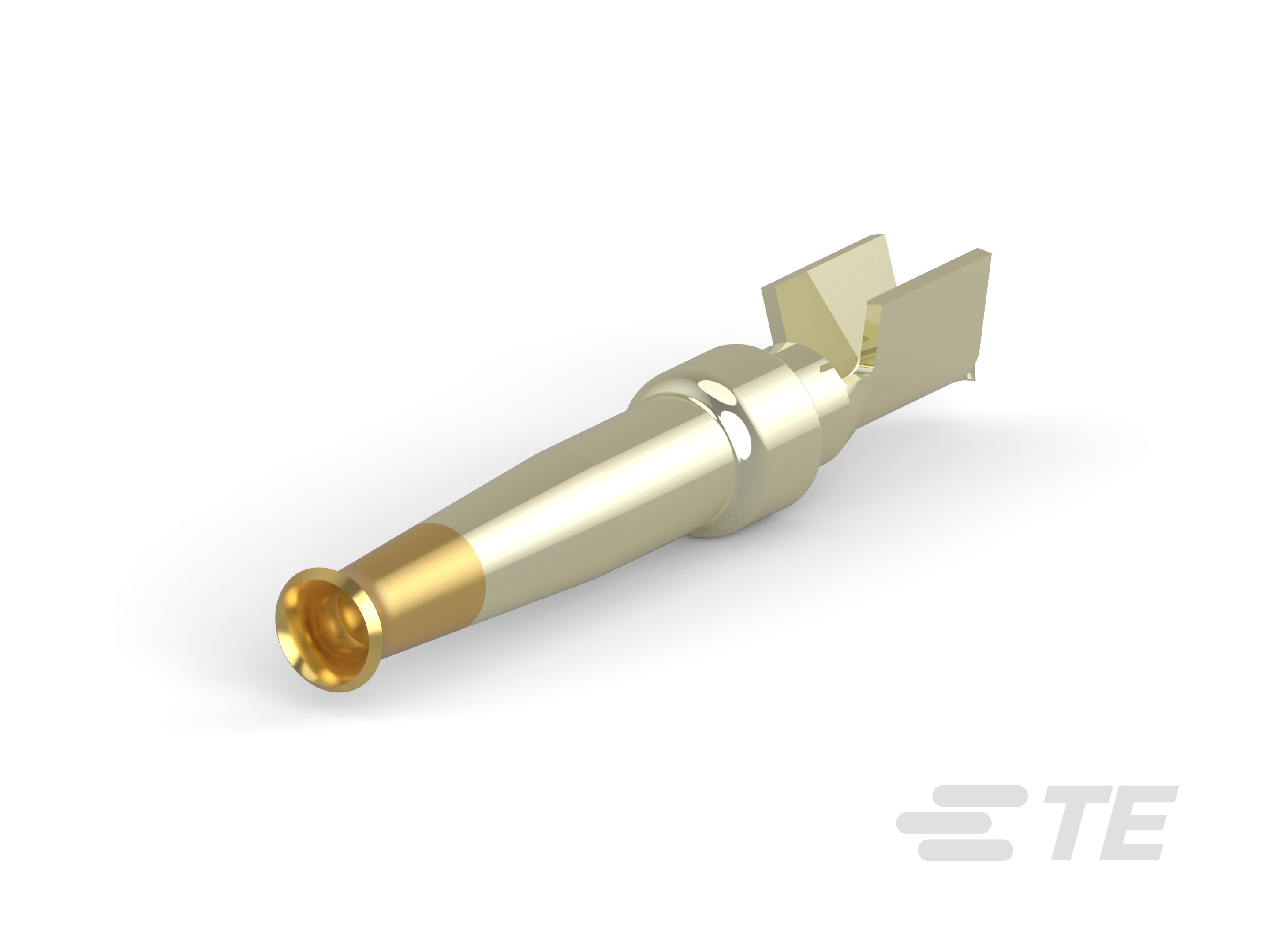

Socket Contact, Gold Flash, Snap-In Contact Retention, Size 20 Contact Size, 24 – 20 AWG, .2 – .6 mm² Wire, Crimp, Copper Alloy, Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 205201-6 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0 |
| Contact Finish Thickness | Flash |
| Contact Finish Thickness (string set options) | Flash |
| Contact Material | Copper Alloy |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
AMPLIMITE Cable Connectors and Shielding Hardware Kits QRG
Datasheet
AMPLIMITE HDP-20 Subminiature D Connector With F Crimp Contacts
AMPLIMITE Subminiature D Connectors - Cable Connectors
Signal Contacts
AMPLIMITE HDP-20 and Economy Crimp Snap Subminiature D Commercial Connectors
AMPLIMITE High Density (HDP-20) Connectors with Crimp-Type Contacts
ENG_CD_205201_Z1.pdf
HD-20 Precision Formed Contacts
