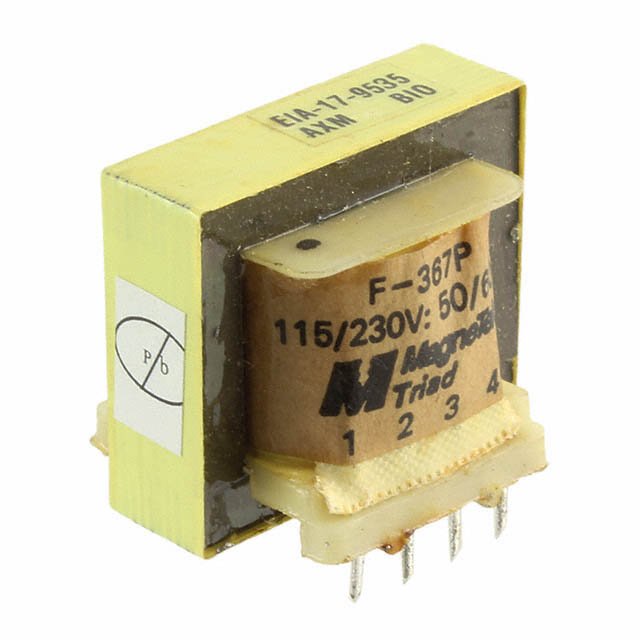

F-367P
ActiveTriad Magnetics
PWR XFMR LAMINATED 1.5VA TH
F-367P
ActiveTriad Magnetics
PWR XFMR LAMINATED 1.5VA TH
Description
General part information
F-367P
PWR XFMR LAMINATED 1.5VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | F-367P |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 13 mA |
| Current - Output (Max) Series | 6.5 mA |
| Height - Seated (Max) | 28.58 mm |
| Mounting Type | Through Hole |
| Power - Max | 1.5 W |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 34.93 mm |
| Size / Dimension Width | 28.58 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 115 V |
| Voltage - Secondary (Full Load) (Series) | 230 V |
| Weight | 0.25 lbs |
