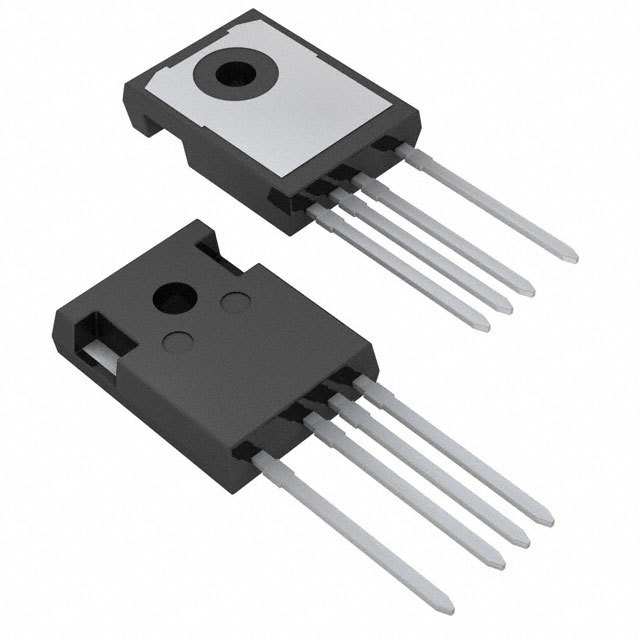

STW75N60M6-4
ActiveN-CHANNEL 600 V, 32 MOHM TYP., 72 A MDMESH M6 POWER MOSFET IN A TO247-4 PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
STW75N60M6-4
ActiveN-CHANNEL 600 V, 32 MOHM TYP., 72 A MDMESH M6 POWER MOSFET IN A TO247-4 PACKAGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STW75N60M6-4 | STW75 Series |
|---|---|---|
| Current - Continuous Drain (Id) @ 25°C | 72 A | 72 A |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V | 10 V |
| FET Type | N-Channel | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 106 nC | 106 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 4850 pF | 4850 pF |
| Mounting Type | Through Hole | Through Hole |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | TO-247-4 | TO-247-4, TO-247-3 |
| Power Dissipation (Max) | 446 W | 446 W |
| Rds On (Max) @ Id, Vgs | 36 mOhm | 36 mOhm |
| Supplier Device Package | TO-247-4 | TO-247-4, TO-247-3 |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Vgs (Max) | 25 V | 25 V |
| Vgs(th) (Max) @ Id | 4.75 V | 4.75 V |
STW75 Series
N-channel 600 V, 32 mOhm typ., 72 A MDmesh M6 Power MOSFET in a TO247-4 package
| Part | Supplier Device Package | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Rds On (Max) @ Id, Vgs | Operating Temperature [Min] | Operating Temperature [Max] | Vgs(th) (Max) @ Id | Mounting Type | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Gate Charge (Qg) (Max) @ Vgs | Power Dissipation (Max) | FET Type | Drain to Source Voltage (Vdss) | Package / Case | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STW75N60M6-4 | TO-247-4 | 25 V | 4850 pF | 36 mOhm | -55 °C | 150 °C | 4.75 V | Through Hole | 72 A | 10 V | 106 nC | 446 W | N-Channel | 600 V | TO-247-4 | MOSFET (Metal Oxide) |
STMicroelectronics STW75N60M6 | TO-247-3 | 25 V | 4850 pF | 36 mOhm | -55 °C | 150 °C | 4.75 V | Through Hole | 72 A | 10 V | 106 nC | 446 W | N-Channel | 600 V | TO-247-3 | MOSFET (Metal Oxide) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STW75 Series
The new MDmesh™ M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. STMicroelectronics builds on the previous generation of MDmesh devices through its new M6 technology, which combines excellent RDS(on)per area improvement with one of the most effective switching behaviors available, as well as a user-friendly experience for maximum end-application efficiency.
