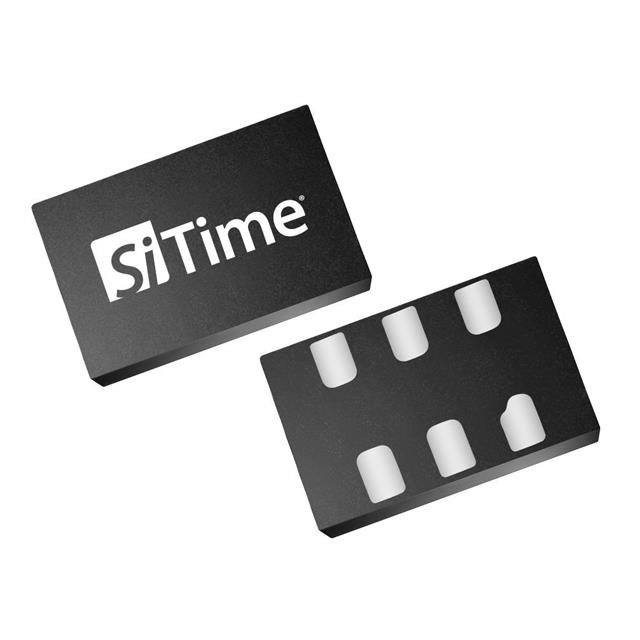

SIT5021AC-2BE-33E-72.000000
ActiveSiTime
MEMS OSC TCXO 72.000000 MHZ LVDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SIT5021AC-2BE-33E-72.000000
ActiveSiTime
MEMS OSC TCXO 72.000000 MHZ LVDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SIT5021AC-2BE-33E-72.000000 | SIT5021 Series |
|---|---|---|
| Absolute Pull Range (APR) | - | 12.5 - 50 ppm |
| Base Resonator | MEMS | MEMS |
| Current - Supply (Disable) (Max) [Max] | 35 mA | 35 - 100 mA |
| Current - Supply (Max) [Max] | 55 mA | 55 - 69 mA |
| Frequency | 72 MHz | 10 - 200 MHz |
| Frequency Stability | 5 ppm | 5 ppm |
| Function | Enable/Disable | Enable/Disable, Standby (Power Down) |
| Height - Seated (Max) | - | 0.039 " |
| Height - Seated (Max) | - | 1 mm |
| Height - Seated (Max) [Max] [z] | 0.8 mm | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " | 0.031 " |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | -20 C | -40 - -20 C |
| Output | LVDS | LVPECL, LVDS |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm | 3.2 - 7 mm |
| Size / Dimension [x] | 0.126 in | 0.126 - 0.276 " |
| Size / Dimension [y] | 2.5 mm | 2.5 - 5 mm |
| Size / Dimension [y] | 0.098 in | 0.098 - 0.197 " |
| Supplier Device Package | - | 3.2x2.5, 6-SMD, 6-SMD (7x5), 6-SMD (5x3.2) |
| Type | TCXO | TCXO, VCTCXO |
| Voltage - Supply | 3.3 V | 2.5 - 3.3 V |
SIT5021 Series
MEMS OSC TCXO 125.0000MHZ LVPECL
...
| Part | Current - Supply (Disable) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current - Supply (Max) [Max] | Frequency | Frequency Stability | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Base Resonator | Function | Mounting Type | Voltage - Supply | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Output | Type | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Absolute Pull Range (APR) | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
35 mA | -20 C | 70 °C | 69 mA | 125 MHz | 5 ppm | 0.039 " | 1 mm | MEMS | Enable/Disable | Surface Mount | 2.5 V | 7 mm | 5 mm | 0.276 " | 0.197 " | LVPECL | TCXO | 6-SMD, No Lead | |||||
-40 °C | 85 °C | 55 mA | 48.0048 MHz | 5 ppm | MEMS | Surface Mount | 3.3 V | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | LVDS | VCTCXO | 6-SMD, No Lead | 0.8 mm | 0.031 " | 50 ppm | 3.2x2.5, 6-SMD | |||||
100 µA | -20 C | 70 °C | 69 mA | 24 MHz | 5 ppm | MEMS | Standby (Power Down) | Surface Mount | 2.5 V | 5 mm | 3.2 mm | 0.197 in | 0.126 " | LVPECL | TCXO | 6-SMD, No Lead | 0.8 mm | 0.031 " | |||||
-40 °C | 85 °C | 55 mA | 148.5 MHz | 5 ppm | 0.039 " | 1 mm | MEMS | Surface Mount | 3.3 V | 7 mm | 5 mm | 0.276 " | 0.197 " | LVDS | VCTCXO | 6-SMD, No Lead | 25 ppm | ||||||
-40 °C | 85 °C | 55 mA | 48.0048 MHz | 5 ppm | MEMS | Surface Mount | 3.3 V | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | LVDS | VCTCXO | 6-SMD, No Lead | 0.8 mm | 0.031 " | |||||||
-40 °C | 85 °C | 69 mA | 125 MHz | 5 ppm | MEMS | Surface Mount | 3.3 V | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | LVPECL | VCTCXO | 6-SMD, No Lead | 0.8 mm | 0.031 " | 25 ppm | ||||||
35 mA | -20 C | 70 °C | 55 mA | 192 MHz | 5 ppm | MEMS | Enable/Disable | Surface Mount | 3.3 V | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | LVDS | TCXO | 6-SMD, No Lead | 0.8 mm | 0.031 " | 3.2x2.5, 6-SMD | ||||
35 mA | -40 °C | 85 °C | 55 mA | 33.3333 MHz | 5 ppm | MEMS | Enable/Disable | Surface Mount | 3.3 V | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | LVDS | TCXO | 6-SMD, No Lead | 0.8 mm | 0.031 " | |||||
-40 °C | 85 °C | 55 mA | 48.0048 MHz | 5 ppm | MEMS | Surface Mount | 3.3 V | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | LVDS | TCXO | 6-SMD, No Lead | 0.8 mm | 0.031 " | |||||||
35 mA | -20 C | 70 °C | 55 mA | 192 MHz | 5 ppm | MEMS | Surface Mount | 3.3 V | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | LVDS | TCXO | 6-SMD, No Lead | 0.8 mm | 0.031 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 10.07 | |
Description
General part information
SIT5021 Series
72 MHz TCXO LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
