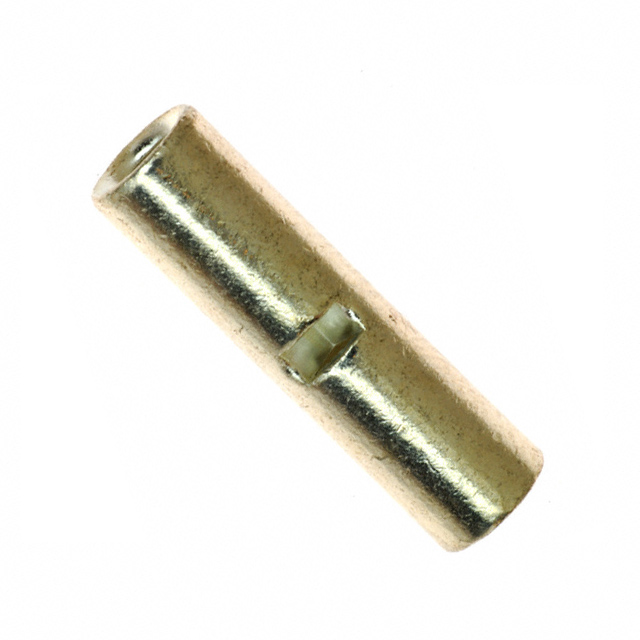

M18BCK

Active

CONN SPLICE 18-22 AWG CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M18BCK

Active

CONN SPLICE 18-22 AWG CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M18BCK	M18 Series

Contact Finish	-	Tin
Contact Material	-	ETP, Copper
Features	-	Brazed Seam
Insulation	Non-Insulated	Non-Insulated
Length - Overall	-	0.6 - 0.93 "
Length - Overall	-	15.24 - 18.8 mm
Length - Overall	-	23.62 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	6.35 mm
Length - Termination	-	0.25 "
Mounting Type	-	Free Hanging (In-Line)
Number of Wire Entries	2	2
Stud/Tab Size	-	6 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Terminal Type	Butt Splice, Inline, Individual Openings	Standard, Circular, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	-	7.87 - 8.64 mm
Width - Outer Edges	-	0.34 in
Width - Outer Edges	-	0.25 - 0.56 in
Width - Outer Edges	-	6.35 - 14.22 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

M18 Series

CONNSPADETERM18-22AWG 1=1BOTTLE

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Features	Terminal Type	Length - Overall [x]	Length - Overall [x]	Insulation	Stud/Tab Size	Contact Finish	Termination	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Length - Ring Center to Termination	Length - Ring Center to Termination	Length - Termination	Length - Termination [x]	Width - Outer Edges	Width - Outer Edges	Stud/Tab Size	Width - Outer Edges [y]	Thickness	Thickness	Width - Outer Edges [y]	Length - Overall	Number of Wire Entries
3M M18-6FBX	0.25 in	6.35 mm	Brazed Seam	Standard	0.65 "	16.5 mm	Non-Insulated	6 Stud	Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP
3M M18-8FX-BOTTLE			Brazed Seam	Standard	0.7 in	17.78 mm	Non-Insulated		Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP	0.29 in	7.37 mm	6.35 mm	0.25 "	8.64 mm	0.34 in	8 Stud
3M M18-8R/LK			Brazed Seam	Circular	0.74 in	18.8 mm	Non-Insulated			Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG						7.87 mm		8 Stud	0.31 in	0.03 in	0.76 mm
3M M18-8R/LX-BOTTLE			Brazed Seam	Circular	0.74 in	18.8 mm	Non-Insulated		Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP					7.87 mm		8 Stud	0.31 in	0.03 in	0.76 mm
3M M18-38RX-BOTTLE			Brazed Seam	Circular	0.93 in		Non-Insulated		Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP							3/8 Stud	0.56 in	0.03 in	0.76 mm	14.22 mm	23.62 mm
3M M18BCX-BOTTLE				Butt Splice, Individual Openings, Inline			Non-Insulated			Crimp		22 AWG	17.5 AWG														2
3M M18-10FBX-BOTTLE	0.25 in	6.35 mm	Brazed Seam	Standard	0.65 "	16.5 mm	Non-Insulated	10 Stud	Tin	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Copper, ETP
3M M18-6R/SK			Brazed Seam	Circular	0.6 in	15.24 mm	Non-Insulated	6 Stud		Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG									0.25 "	0.03 in	0.76 mm	6.35 mm
3M M18BCK				Butt Splice, Individual Openings, Inline			Non-Insulated			Crimp		22 AWG	17.5 AWG														2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.54
		10	$ 0.47
		25	$ 0.43
		50	$ 0.40
		100	$ 0.39
		250	$ 0.35
		500	$ 0.34
		1000	$ 0.28
		3000	$ 0.25

Description

General part information

M18 Series

Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG
