392-055-558-107
ActiveEDAC Inc.

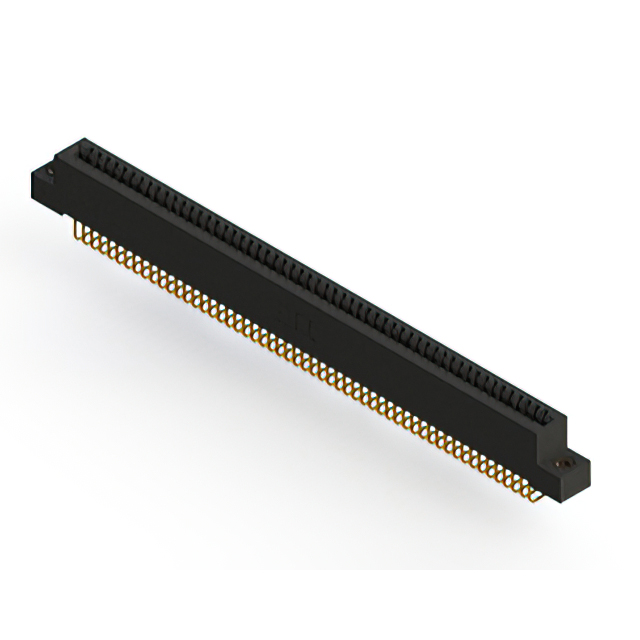

CONN EDGE SINGLE FML 55POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-055-558-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 55POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-055-558-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 55 positions |
| Number of Positions/Bay/Row [custom] | 55 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
392-055 Series
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Number of Rows | Contact Finish | Contact Material | Color | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination Rows | Pitch [x] | Pitch [x] | Contact Type | Termination | Card Type | Material - Insulation | Gender | Number of Positions/Bay/Row [custom] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Gold | Copper Alloy | Black | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Solder | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Gold | Copper Alloy | Black | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Solder | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Gold | Copper Alloy | Black | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Solder | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Gold | Copper Alloy | Black | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Wire Wrap | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Gold | Copper Alloy | Black | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Wire Wrap | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Gold | Copper Alloy | Black | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Solder | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 1 | Gold | Copper Alloy | Black | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Solder Wire Wrap | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Gold | Copper Alloy | Black | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Wire Wrap | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Gold | Copper Alloy | Black | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Solder | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C |
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 1 | Gold | Copper Alloy | Black | 10 Áin | 0.25 Ám | Single | 1 | 2.54 mm | 0.1 in | Cantilever | Solder | Non Specified - Single Edge | Polyester Thermoplastic | Female | 55 | 55 positions | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 26.46 | |
Description
General part information
392-055 Series
55 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
