TXR40AB90-0804AI2

Active

TE Connectivity Aerospace, Defense and Marine

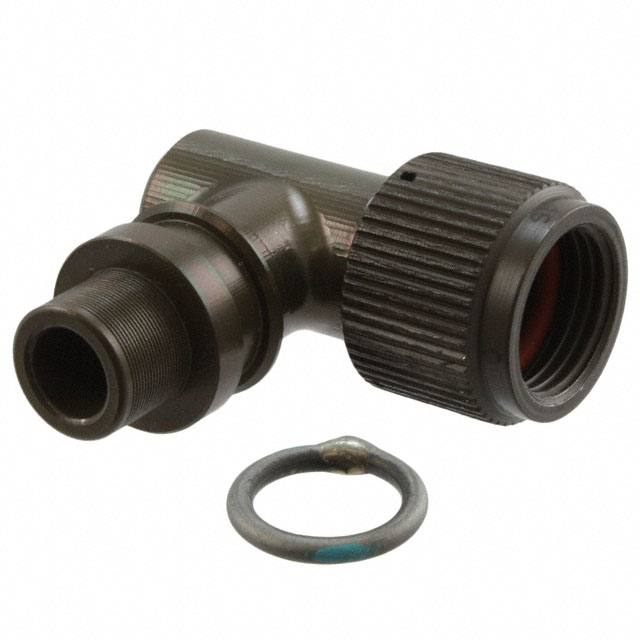

CONN BACKSHELL ADPT SZ9 OLIV M12

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTinel-Lock Adapters Spec Datasheet

TXR40AB90-0804AI2

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSHELL ADPT SZ9 OLIV M12

Deep-Dive with AI

DocumentsTinel-Lock Adapters Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TXR40AB90-0804AI2	TXR40AB90 Series

Cable Exit	90 °	90 °
Color	Olive Drab	Olive Drab
Diameter - Outside	-	29 mm
Diameter - Outside [diameter]	18 mm	1.142 - 43.5 in
Diameter - Outside [diameter]	0.709 in	0.709 - 1.713 "
Features	Tinel Lock	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs	1 pcs
Includes	-	1 Braid, 2 O-Rings, 2 pc Backshell, 1 Tinel Ring
Ingress Protection	Environment Resistant	Environment Resistant
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium
Shell Size - Insert	-	11 - 25
Shell Size - Insert	-	D, G, J, F, B, 17, E, H, C
Shell Size - Insert [custom]	9	9
Shell Size - Insert [custom]	A	A
Shielding	Shielded	Shielded
Thread Size	M12x1	M31x1, M37x1, M28x1, M15x1, M25x1, M12x1, M34x1, M18x1
Type	Backshell, Heat Shrink Adapter	Backshell, Heat Shrink Adapter

TXR40AB90 Series

CONN BACKSHELL ADPT SZ15 D M22

Part	Plating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	For Use With/Related Products	Includes	Shell Size - Insert	Shell Size - Insert	Material	Shielding	Color	Cable Exit	Features	Type	Ingress Protection	Diameter - Outside [diameter]	Thread Size	Includes
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1408AI	Cadmium	1.142 in	29 mm	MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	15	D	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant
TE Connectivity Aerospace, Defense and Marine TXR40AB90-2007BI	Cadmium	37 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	21	G	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.457 "	M31x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-2412AI	Cadmium	43.5 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	25	J	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.713 "	M37x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1808AI	Cadmium	35.5 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	19	F	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.398 in	M28x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1006AI	Cadmium	21 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	11	B	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	0.827 in	M15x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-2008BI	Cadmium	37 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	21	G	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.457 "	M31x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1407BI-CS2261	Cadmium	1.142 in	29 mm	MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	15	D	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1610AI	Cadmium	32.49 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs		17, E	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.279 in	M25x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-2410AI	Cadmium	43.5 mm		MIL-DTL-38999 Series III, IV	1 pcs, 1 pcs, 1 pcs, 1 pcs	25	J	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.713 "	M37x1
TE Connectivity Aerospace, Defense and Marine TXR40AB90-1818BI	Cadmium	35.5 mm		MIL-DTL-38999 Series III, IV		19	F	Aluminum Alloy	Shielded	Olive Drab	90 °	Tinel Lock	Backshell, Heat Shrink Adapter	Environment Resistant	1.398 in	M28x1	1 Braid, 1 Tinel Ring, 2 O-Rings, 2 pc Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 256.58

Description

General part information

TXR40AB90 Series

Olive Drab Connector Backshell, Heat Shrink Adapter M12x1 9, A

Documents

Technical documentation and resources

Tinel-Lock Adapters Spec

Datasheet
