EMMA180167-P6RP-IC

Active

CUI Inc.

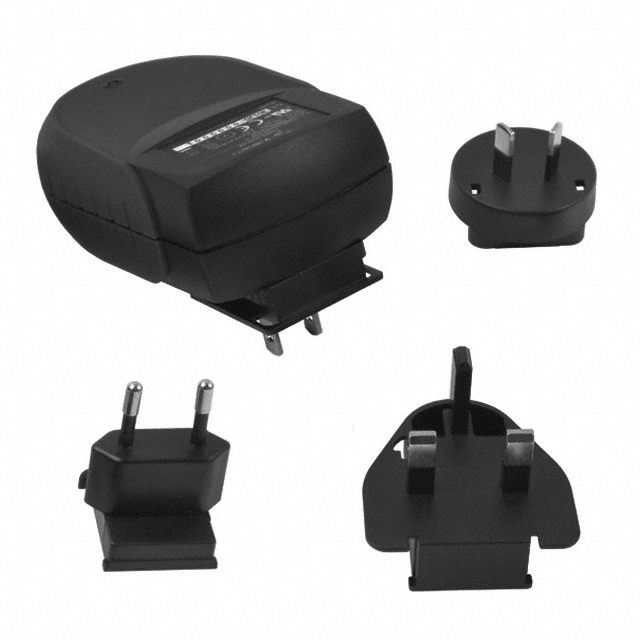

AC/DC WALL MOUNT ADAPTER 18V 30W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC WALL MOUNT ADAPTER 18V 30W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC WALL MOUNT ADAPTER 18V 30W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Input Type	Output Connector [x]	Output Connector [diameter]	Output Connector	Approval Agency	No Load Power Consumption	Form	Polarization	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max) [Max]	Cord Length	Cord Length	Input Connector	Power (Watts)	Region Utilized	Weight	Weight	Standard Number
CUI Inc. EMMA180167-P6RP-IC	40 °C	0 °C	Medical	Level V	4.28 ", 108.7 mm	1.45 ", 36.7 mm	2.44 in, 62 mm	Multi-Blade (Included)	9.5 mm	2.5 mm, 5.5 mm	Barrel Plug R/A	EN, FCC, SIQ, TUV, UL	300 mW	Wall Mount (Class II)	Positive Center	18 V	90 VAC	264 VAC	1.67 A	70.9 in	1.8 m	Multi-Blade	30 W	International	300.28 g	0.662 lb	55011 Class B, 60601-1, 61000-3-2, 61000-3-3, 61000-6-1, 61010-1
CUI Inc. EMMA180167-P5P-IC	40 °C	0 °C	Medical	Level V	4.28 ", 108.7 mm	1.45 ", 36.7 mm	2.44 in, 62 mm	Multi-Blade (Included)	9.5 mm	2.1 mm, 5.5 mm	Barrel Plug	EN, FCC, SIQ, TUV, UL	300 mW	Wall Mount (Class II)	Positive Center	18 V	90 VAC	264 VAC	1.67 A	70.9 in	1.8 m	Multi-Blade	30 W	International	300.28 g	0.662 lb	55011 Class B, 60601-1, 61000-3-2, 61000-3-3, 61000-6-1, 61010-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	250	$ 36.51

General part information

18V 30 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
