FRN12JT1R00
ActiveStackpole Electronics Inc
RES 1 OHM 5% 1/2W AXIAL
FRN12JT1R00
ActiveStackpole Electronics Inc
RES 1 OHM 5% 1/2W AXIAL
Description
General part information
FRN12JT1R00

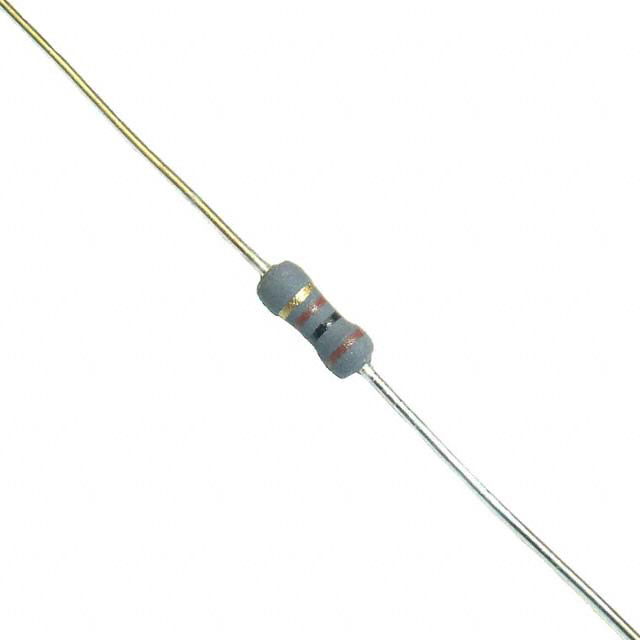

1 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Flame Proof, Fusible, Moisture Resistant, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | FRN12JT1R00 |
|---|---|
| Composition | Metal Film |
| Features | Flame Proof, Safety, Moisture Resistant, Fusible |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 1 Ohm |
| Size / Dimension Diameter | 0.118 in |
| Size / Dimension Length | 0.354 in |
| Temperature Coefficient | 350 ppm/°C |
| Tolerance | 5 % |
