1-1939761-3

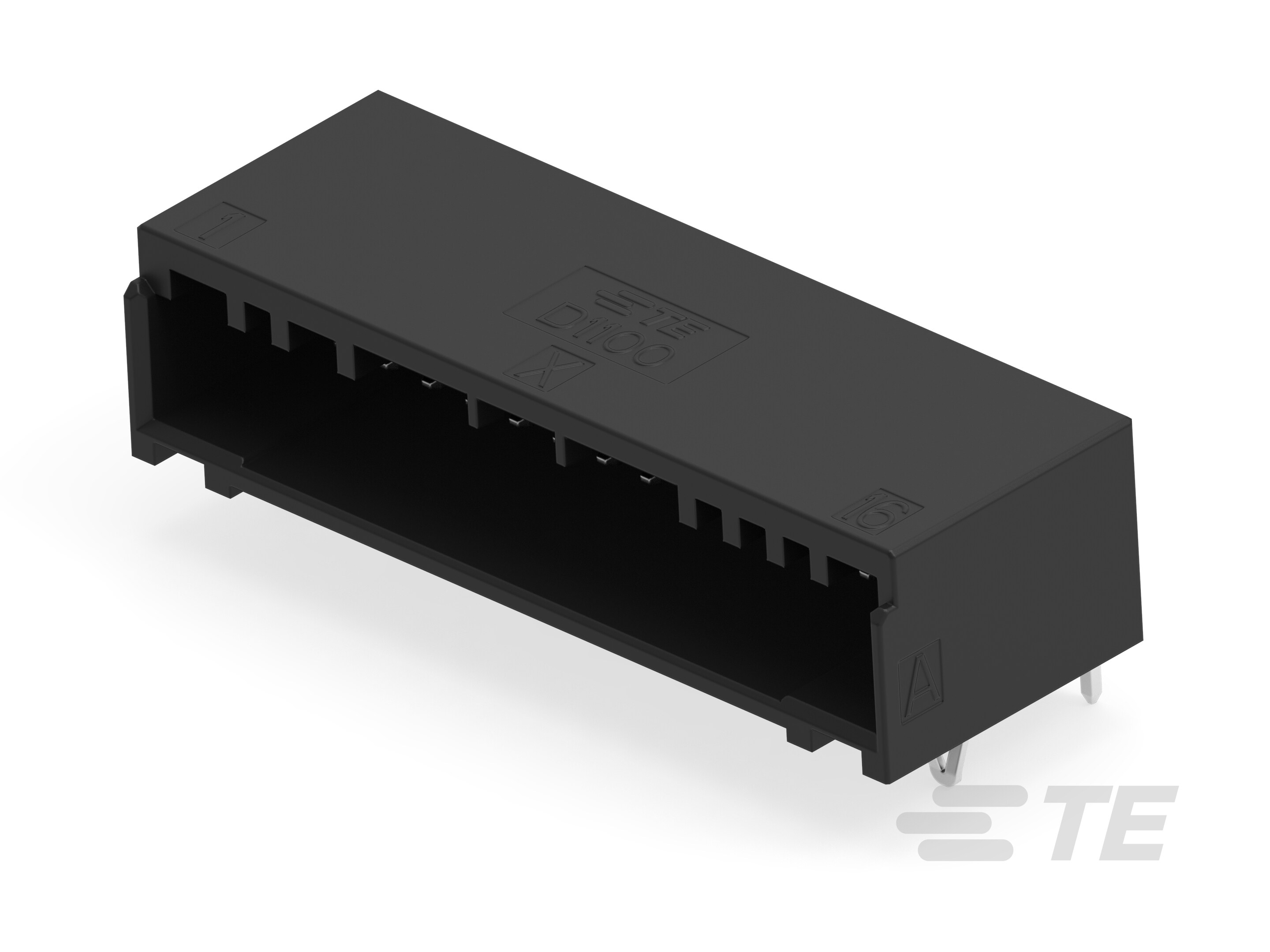

Connector Assembly, Plug, Wire-to-Board, 16 Position, 2 mm [.078 in] Centerline, Crimp, 1 Row, Black, Printed Circuit Board, Signal, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1939761-3 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.335 in |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch - Mating | 0.079 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
