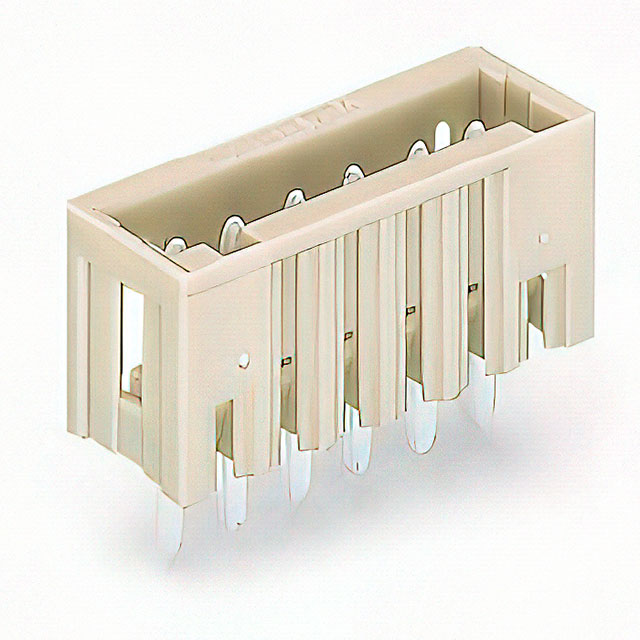

734-132
ActiveWAGO Corporation
HEADER MALE VERTICAL 2POS
Deep-Dive with AI
Search across all available documentation for this part.
734-132
ActiveWAGO Corporation
HEADER MALE VERTICAL 2POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 734-132 |
|---|---|
| Color | Gray |
| Contact Material | Electrolytic Copper |
| Contact Mating Finish | Tin |
| Contact Tail Length | 4.5 mm |
| Contact Tail Length | 0.177 in |
| Current - IEC | 10 A |
| Current - UL | 10 A |
| Header Orientation | Vertical |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -60 °C |
| Pitch [x] | 3.5 mm |
| Pitch [x] | 0.138 in |
| Positions Per Level | 2 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - IEC | 320 V |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.11 | |
| 10 | $ 0.94 | |||
| 100 | $ 0.84 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.61 | |||
| 5000 | $ 0.54 | |||
| 10000 | $ 0.51 | |||
Description
General part information
734-132
2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
