171519-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 10-12AWG CRIMP
171519-1
ActiveTE Connectivity AMP Connectors
CONN RING CIRC 10-12AWG CRIMP
Description
General part information
171519-1

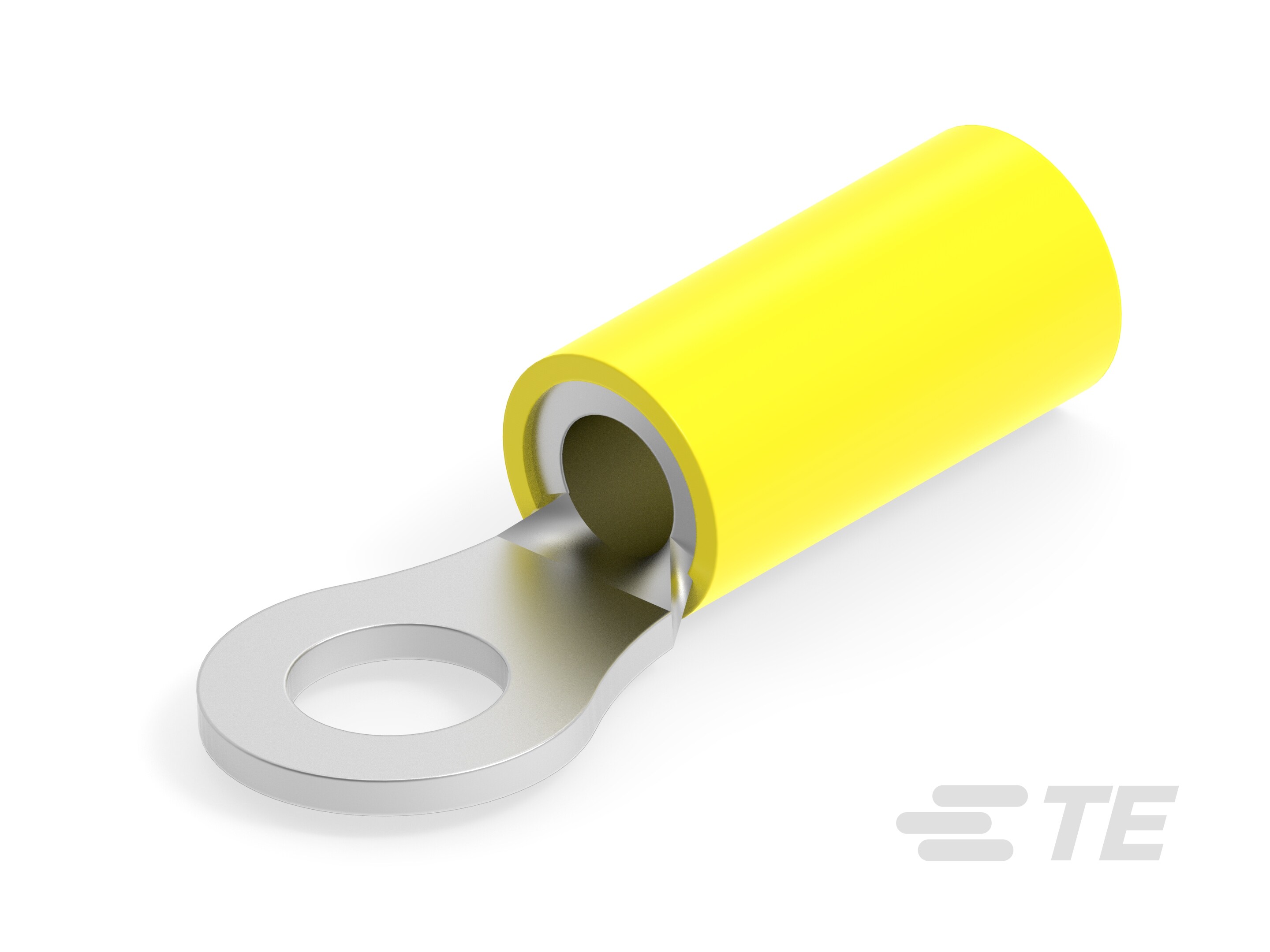

Closed Ring Tongue Terminal, 12 – 10 AWG, M5 Stud, 5.26 mm [.207 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 171519-1 |
|---|---|
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 1.083 in |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.04 in |
| Width - Outer Edges | 0.374 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
