Description
General part information
13302

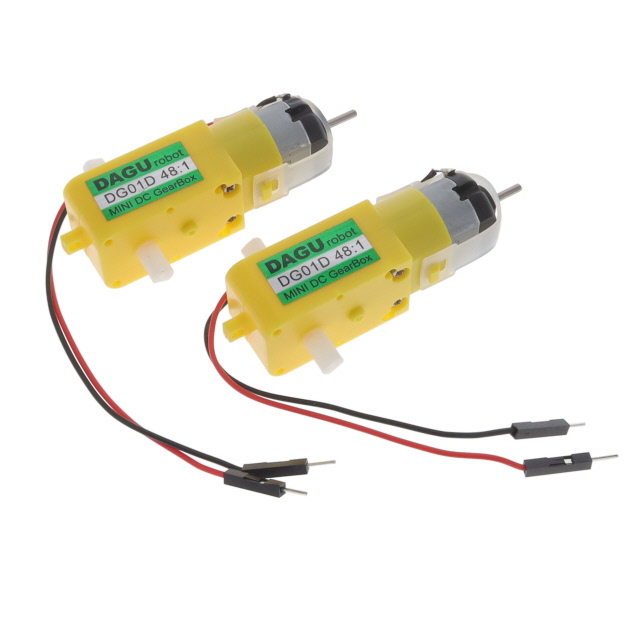

DC Motor Gearmotor 140 RPM 4.5VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 13302 |
|---|---|
| Diameter - Shaft | 0.142 in |
| Function | Gearmotor |
| Gear Reduction Ratio | 48 |
| Length - Shaft and Bearing | 0.386 in |
| Mounting Hole Spacing | 0.689 in |
| RPM | 140 RPM |
| Size / Dimension Length | 0.74 in |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 0.74 in |
| Termination Style | Wire Leads |
| Torque - Rated (mNm) | 78.45 mNm |
| Torque - Rated (oz-in) | 11.11 oz-in |
| Type | DC Motor |
| Voltage - Rated | 4.5 VDC |
