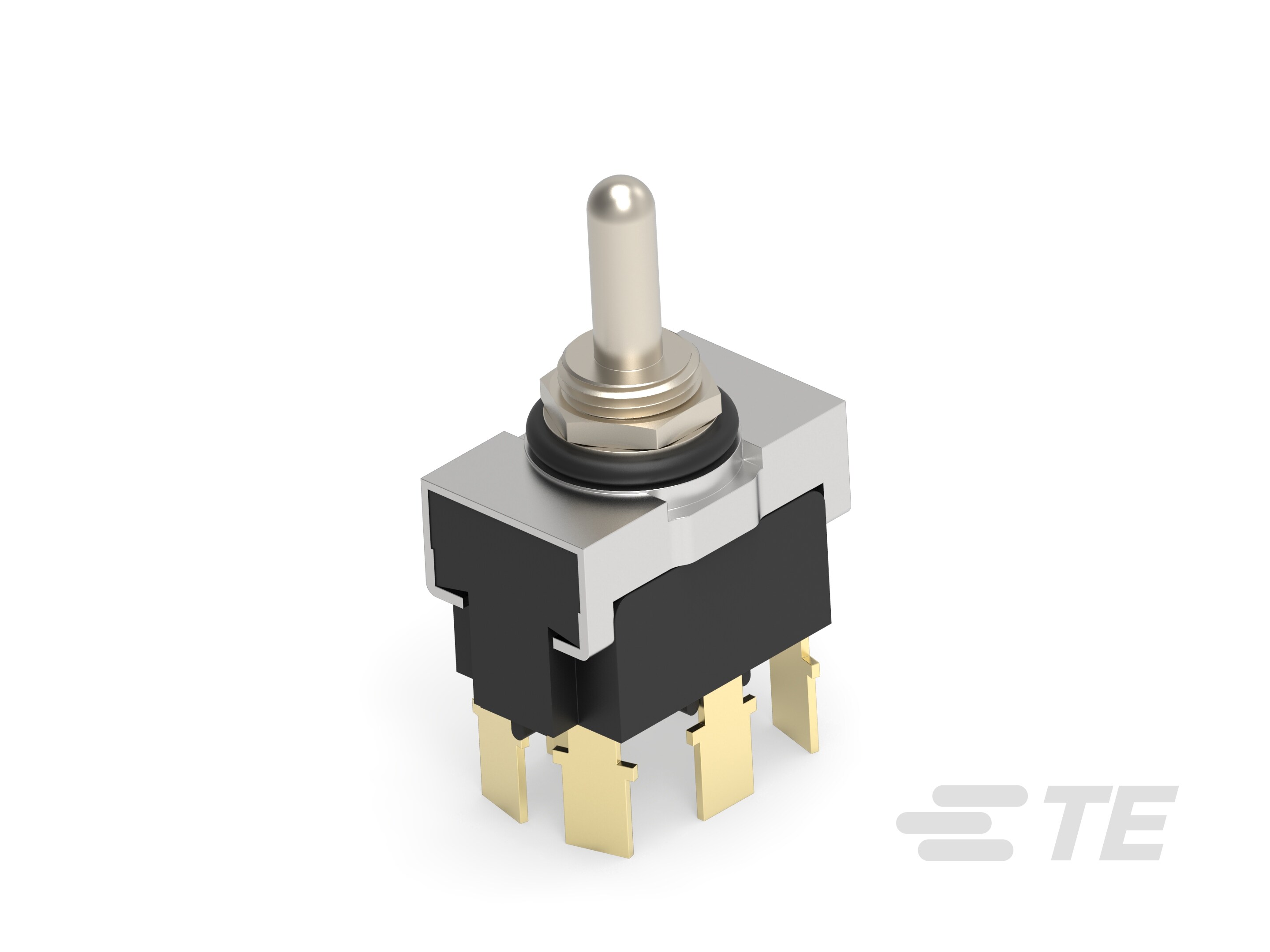

Specification	3-6437592-9

Actuator Length	17.5 mm
Actuator Type	Standard Round
Bushing Thread	M12 x 1
Bushing Thread Diameter	12 mm
Bushing Thread Pitch	1 mm
Circuit	DPDT
Current Rating	20 A
Features	Sealed
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Panel Mount
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Diameter	12.5 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off-On
Termination Style	Quick Connect
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V
