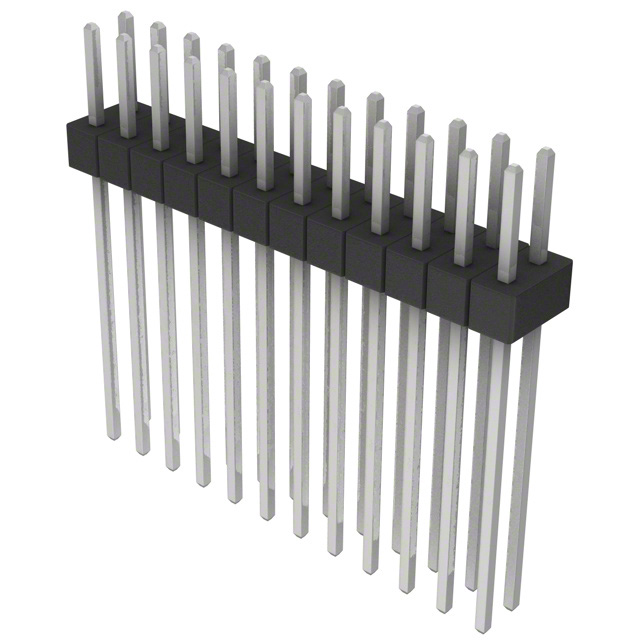

PEC12DAGN

Active

Sullins Connector Solutions

CONN HEADER VERT 24POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC12DAGN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	18.29 mm
Contact Length - Post [x]	0.72 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	1.05 in
Overall Contact Length	26.67 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC12 Series

Part	Connector Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Contact Material	Insulation Color	Contact Finish - Post	Material Flammability Rating	Number of Positions	Mounting Type	Contact Shape	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Number of Rows	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Shrouding	Insulation Material	Contact Type	Contact Length - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PEC12SFDN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.318 "	8.08 mm	0.1 in	2.54 mm	Phosphor Bronze	Black	Tin	UL94 V-0	12	Through Hole	Square	All	2.54 çm	100 çin	Solder	1	21.29 mm	0.838 in	3 A	0.1 in	2.54 mm	10.67 mm	0.42 in	Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin
Sullins Connector Solutions PEC12DAHN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.23 in		0.1 in	2.54 mm	Phosphor Bronze	Black	Tin	UL94 V-0	24	Through Hole	Square	All	2.54 çm	100 çin	Solder	2	29.21 mm	1.15 in	3 A	0.1 in	2.54 mm	20.83 mm	0.82 in	Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC12DAGN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.23 in		0.1 in	2.54 mm	Phosphor Bronze	Black	Tin	UL94 V-0	24	Through Hole	Square	All	2.54 çm	100 çin	Solder	2	26.67 mm	1.05 in	3 A	0.1 in	2.54 mm	18.29 mm	0.72 "	Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin	5.84 mm	2.54 mm	0.1 in
Sullins Connector Solutions PEC12SBBN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.23 in		0.14 in	3.56 mm	Phosphor Bronze	Black	Tin	UL94 V-0	12	Through Hole Right Angle	Square	All	2.54 çm	100 çin	Solder	1			3 A	0.1 in	2.54 mm	5.08 mm	0.2 in	Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin	5.84 mm
Sullins Connector Solutions PEC12DFBN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.318 "	8.08 mm	0.1 in	2.54 mm	Phosphor Bronze	Black	Tin	UL94 V-0	24	Through Hole	Square	All	2.54 çm	100 çin	Solder	2	16.21 mm	0.638 in	3 A	0.1 in	2.54 mm			Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin		2.54 mm	0.1 in	0.22 in	5.58 mm
Sullins Connector Solutions PEC12SAFN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.23 in		0.1 in	2.54 mm	Phosphor Bronze	Black	Tin	UL94 V-0	12	Through Hole	Square	All	2.54 çm	100 çin	Solder	1	24.13 mm	0.95 in	3 A	0.1 in	2.54 mm			Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin	5.84 mm			0.62 in	15.75 mm
Sullins Connector Solutions PEC12DBAN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.23 in		0.24 in	6.1 mm	Phosphor Bronze	Black	Tin	UL94 V-0	24	Through Hole Right Angle	Square	All	2.54 çm	100 çin	Solder	2			3 A	0.1 in	2.54 mm			Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin	5.84 mm	2.54 mm	0.1 in	0.1 in	2.54 mm
Sullins Connector Solutions PEC12SFBN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.318 "	8.08 mm	0.1 in	2.54 mm	Phosphor Bronze	Black	Tin	UL94 V-0	12	Through Hole	Square	All	2.54 çm	100 çin	Solder	1	16.21 mm	0.638 in	3 A	0.1 in	2.54 mm			Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin				0.22 in	5.58 mm
Sullins Connector Solutions PEC12SBAN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.23 in		0.14 in	3.56 mm	Phosphor Bronze	Black	Tin	UL94 V-0	12	Through Hole Right Angle	Square	All	2.54 çm	100 çin	Solder	1			3 A	0.1 in	2.54 mm			Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin	5.84 mm			0.1 in	2.54 mm
Sullins Connector Solutions PEC12DAAN	Breakaway Header	Push-Pull	2.54 µm	100 µin	125 °C	-65 ░C	Board to Board Cable	0.23 in		0.1 in	2.54 mm	Phosphor Bronze	Black	Tin	UL94 V-0	24	Through Hole	Square	All	2.54 çm	100 çin	Solder	2	11.43 mm	0.45 "	3 A	0.1 in	2.54 mm	3.05 mm	0.12 in	Unshrouded	Polybutylene Terephthalate (PBT)	Male Pin	5.84 mm	2.54 mm	0.1 in
