RAPC322
ObsoleteSWITCHCRAFT/CONXALL
PWR ENT RCPT IEC320-C8 PNL SLDR
RAPC322
ObsoleteSWITCHCRAFT/CONXALL
PWR ENT RCPT IEC320-C8 PNL SLDR
Description
General part information
RAPC322

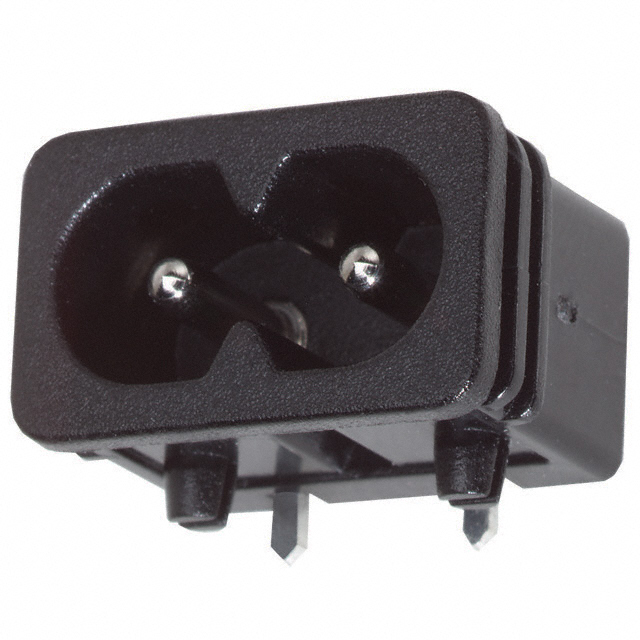

Power Entry Connector Receptacle, Male Pins IEC 320-C8, Non-Polarized Panel Mount, Snap-In; Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | RAPC322 |
|---|---|
| Accomodates a Fuse | No |
| Approval Agency | UL, CSA |
| Connector Style | IEC 320-C8, Non-Polarized |
| Connector Type | Receptacle, Male Pins |
| Filter Type | Unfiltered, Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In, Through Hole, Right Angle |
| Number of Positions | 2 |
| Panel Thickness | 0.059 in |
| Termination | Solder |
