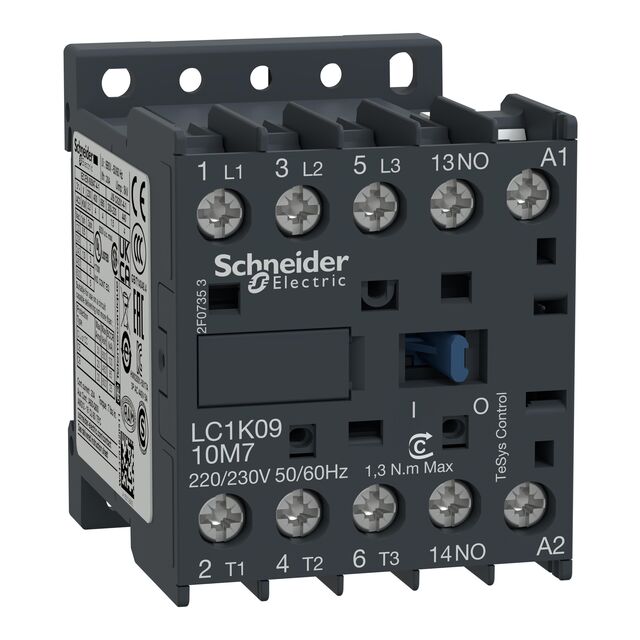

LC1K0910G7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, 9 A, DIN RAIL, PANEL, 600 VAC, 3PST-NO, 3 POLE, 5 HP
LC1K0910G7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, 9 A, DIN RAIL, PANEL, 600 VAC, 3PST-NO, 3 POLE, 5 HP
Description
General part information
LC1K0910G7
The LC1K0910G7 is a 3-pole DIN-rail panel-mount Contactor suitable for resistive load motor control applications. It offers 2000m Operating altitude without derating in temperature.
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1K0910G7 |
|---|---|
| Coil Voltage | 120 V |
| Contact Form | A, PST-NO, Form, 3 |
| Contact Rating (Current) | 9 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 96 V |
| Must Release Voltage | 24 VDC |
| Operate Time | 20 ms |
| Pin Count | 3 pins |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
