Description
General part information

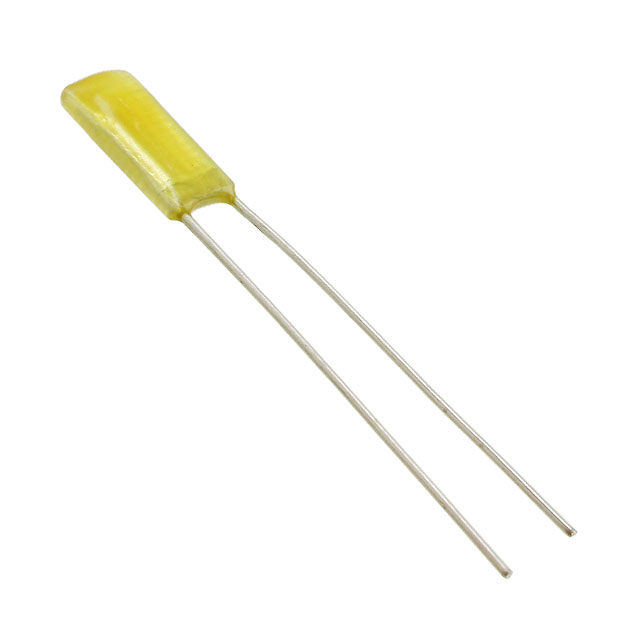

QYX2A102JTP
1000 pF Film Capacitor 100V Polyester Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | QYX2A102JTP |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 pF |
| Dielectric Material | Polyester |
| Height - Seated (Max) | 0.453 in |
| Lead Spacing | 0.138 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.217 in |
| Size / Dimension Width | 0.11 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - DC | 100 V |
