0810ABSWS188
ActiveKanebridge
SELF-TAPPING SCREW - TYPE AB - S
0810ABSWS188
ActiveKanebridge
SELF-TAPPING SCREW - TYPE AB - S
Description
General part information
0810ABSWS188

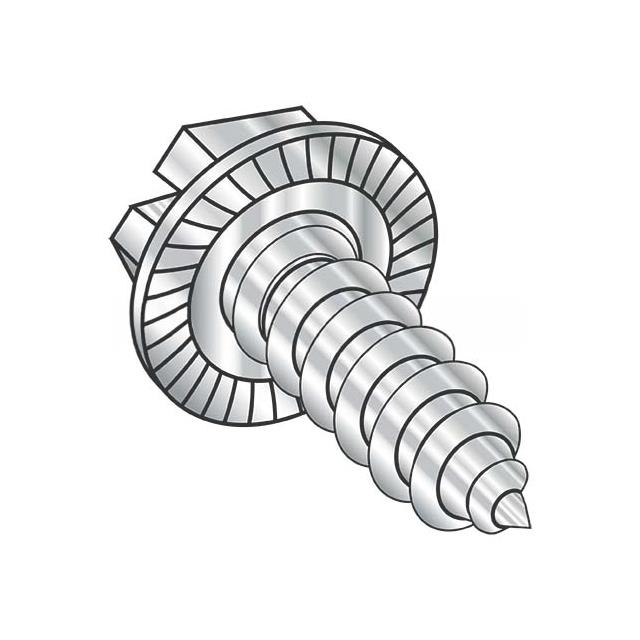

#8-18 Indented Hex Head Self-Tapping Screw Slotted Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0810ABSWS188 |
|---|---|
| Drive Type | Slotted |
| Features | Serrated Washer |
| Head Diameter | 0.247 in |
| Head Height | 0.103 in |
| Length - Below Head | 0.625 in |
| Length - Overall | 0.728 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Indented Hex Head |
| Thread Size (Max) | 18 mm |
| Thread Size (Min) | 8 mm |
| Type | Self-Tapping Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
