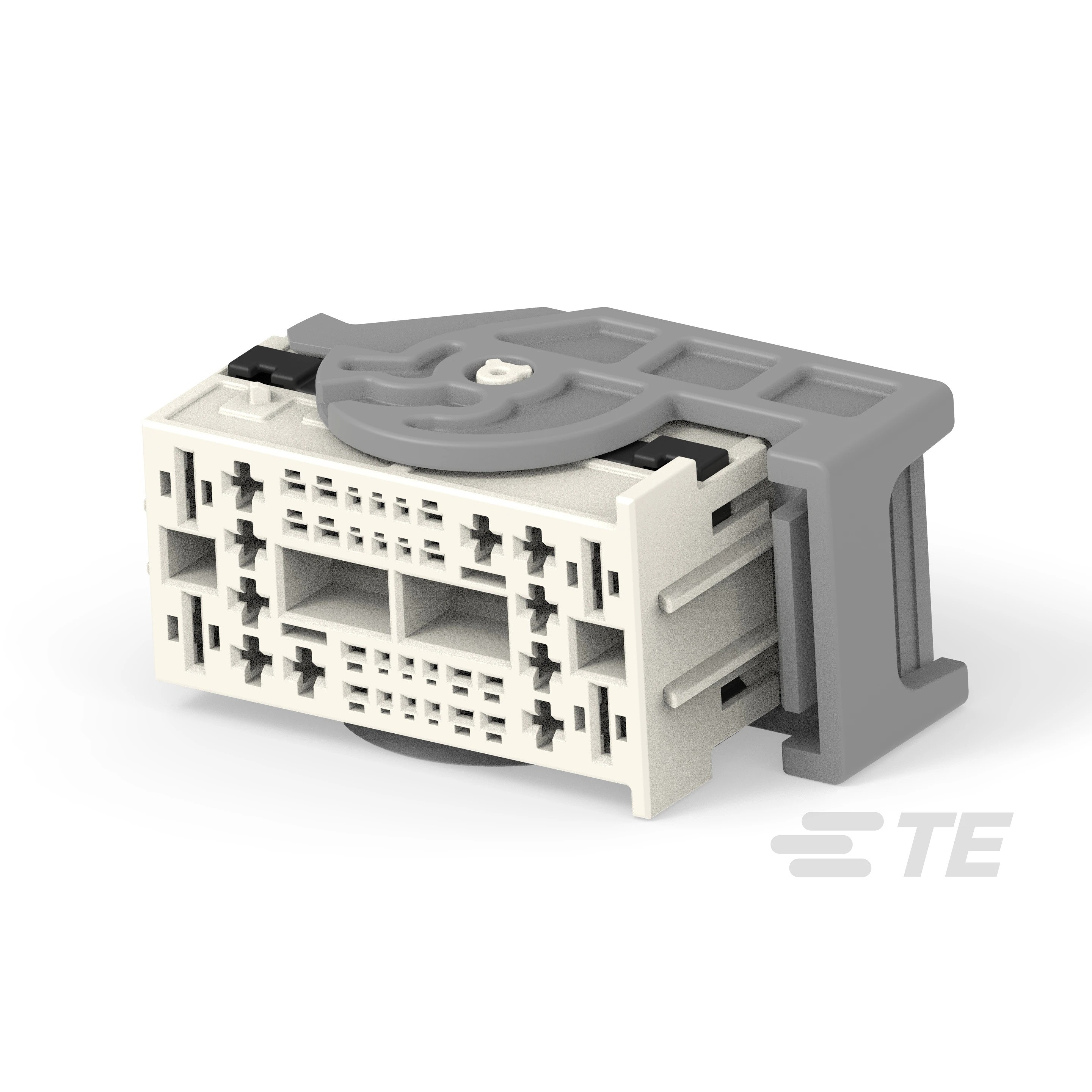

1-2188532-1
ActiveTE Connectivity AMP Connectors
HYB LIF 38P PLUG ASSY-B
1-2188532-1
ActiveTE Connectivity AMP Connectors
HYB LIF 38P PLUG ASSY-B
Description
General part information
1-2188532-1
38 Position Housing, Housing for Female Terminals, Wire-to-Board, 2.5 mm / 8.6 mm [.09 in / .33 in] Centerline, Natural, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2188532-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Lever Lock |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 38 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
