6-215882-0
ActiveTE Connectivity AMP Connectors

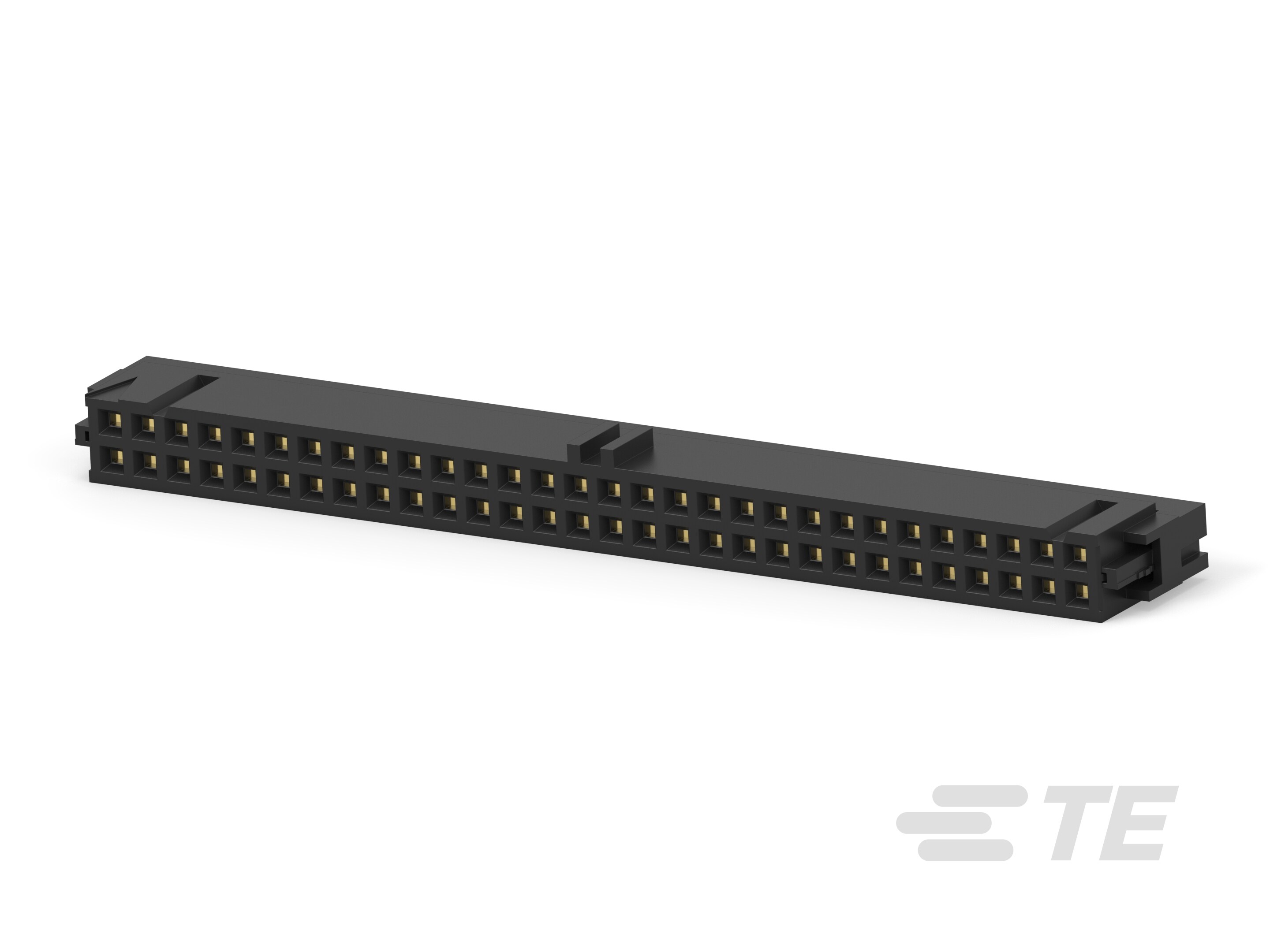

60 WAY BLACK MK II RECP
6-215882-0
ActiveTE Connectivity AMP Connectors
60 WAY BLACK MK II RECP
Description
General part information
AMP-LATCH - NOVO Series
Wire-to-Board, 60 Position, 2.54 mm [.1 in] Centerline, 2 Row, Receptacle, Wire & Cable, Signal, AMP-LATCH - NOVO, Ribbon Cable Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-215882-0 |
|---|---|
| Cable Termination | Crimp |
| Color | Gray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Type | Female Socket |
| Fastening Type | Locking Ramp |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
| Wire Type | Ribbon Cable |
