FC0402E15R0BTT0
ActiveVishay Dale Thin Film
RES 15 OHM 0.1% 1/20W 0402
FC0402E15R0BTT0
ActiveVishay Dale Thin Film
RES 15 OHM 0.1% 1/20W 0402
Description
General part information
FC0402E15R0BTT0

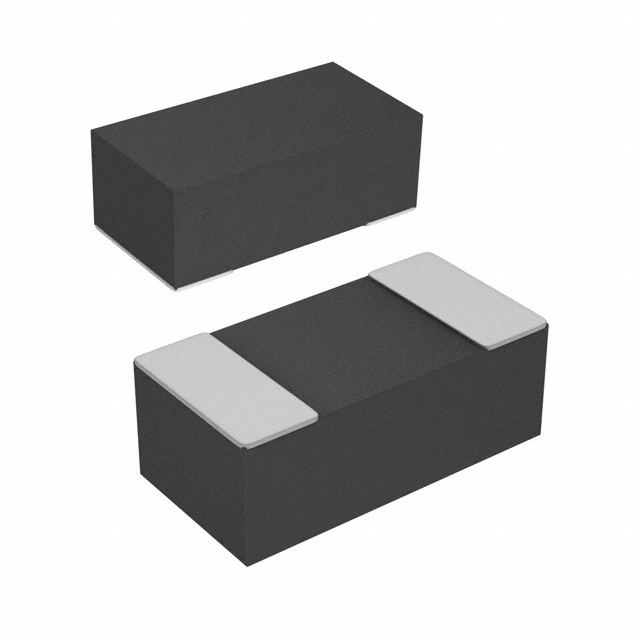

15 Ohms ±0.1% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) RF, High Frequency Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | FC0402E15R0BTT0 |
|---|---|
| Composition | Thin Film |
| Features | RF, High Frequency |
| Height - Seated (Max) | 0.015 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 |
| Power (Watts) | 50 mW |
| Power (Watts) Options | 1/20W |
| Resistance | 15 Ohm |
| Size / Dimension Length | 0.042 in |
| Size / Dimension Width | 0.022 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
