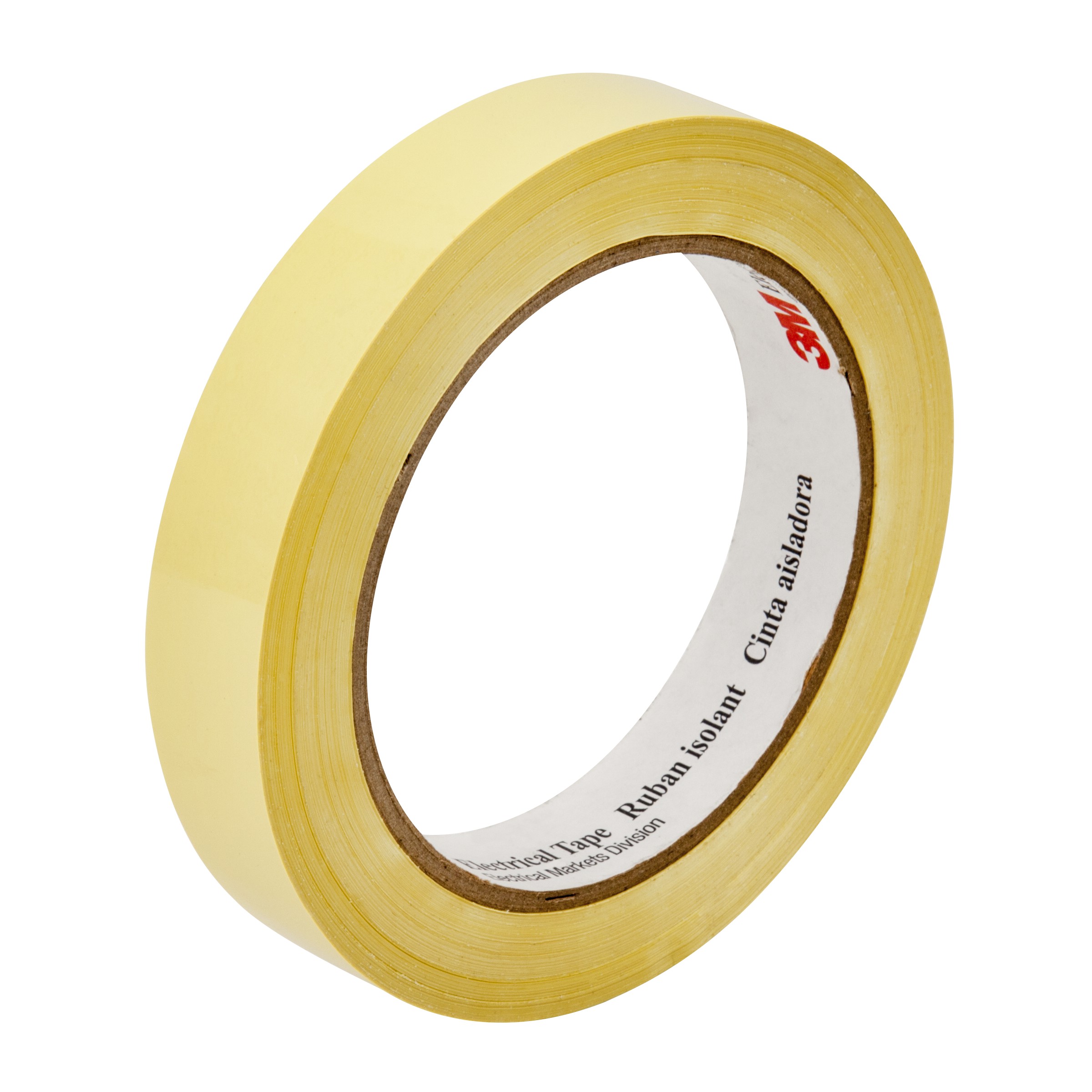

56LOG 15.5"X72YD
Active3M Electronic Specialty
POLYESTER FILM ELECTRICAL TAPE 5
56LOG 15.5"X72YD
Active3M Electronic Specialty
POLYESTER FILM ELECTRICAL TAPE 5
Description
General part information
56LOG 15.5"X72YD
POLYESTER FILM ELECTRICAL TAPE 5
Technical Specifications
Parameters and characteristics for this part
| Specification | 56LOG 15.5"X72YD |
|---|---|
| Adhesive | Rubber |
| Backing | Polyester Film |
| Carrier | Polyester Film |
| Color | Yellow |
| Length (ft) | 216 ft |
| Length (yd) | 72 yd |
| Tape Type | Electrical |
| Temperature Range (Max) | 266 °F |
| Temperature Range (Min) | 0 °C |
| Thickness | 0.0023 in |
| Thickness - Adhesive | 0.0013 in |
| Thickness - Backing, Carrier | 0.001 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
