Description
General part information

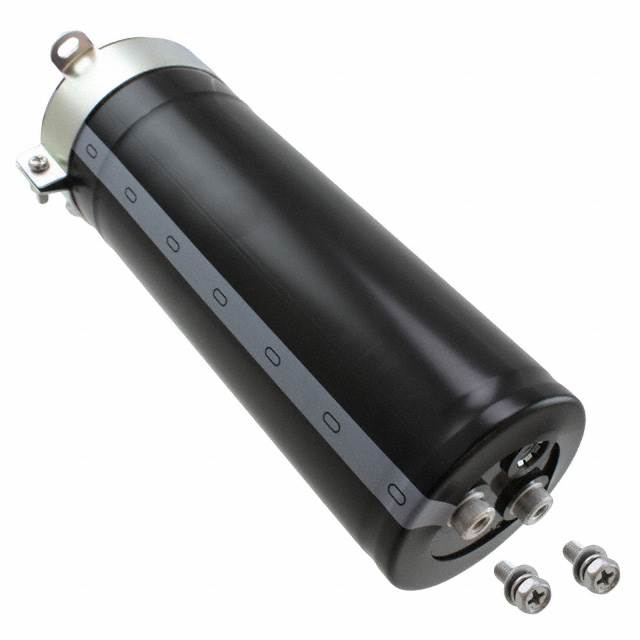

LNX2W472MSEG
4700 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 20000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNX2W472MSEG |
|---|---|
| Applications | General Purpose |
| Capacitance | 4700 µF |
| Height - Seated (Max) | 7.598 in |
| Lead Spacing | 1.126 in |
| Lifetime | 20000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 17.3 A, 24.22 A |
| Size / Dimension Diameter | 2.5 in |
| Tolerance | 20 % |
| Voltage - Rated | 450 V |
